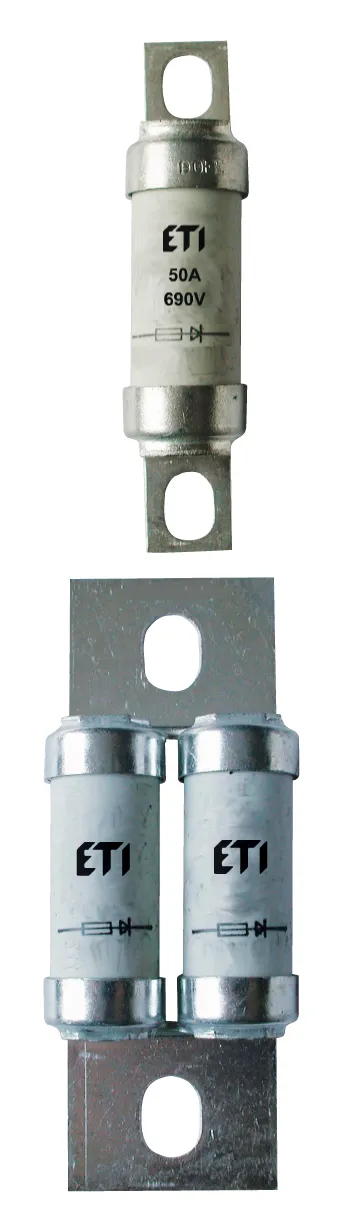

Fuse link BS38TUQ/83/225A/690V 004750935

Specifications

ETI Code:
004750935
Description:
BS38TUQ/83/225A/690V
Class name:
Fuse link
Type:
BS
Size:
BS38T
Rated current (A):
225
Rated AC voltage (V):
690
Rated DC voltage (V):
350
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Dimensions:
screw 83mm
Power dissipation (W):
39
Operating joule integral (A2s):
30.000
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product
3838895362272
Net weight of the product
0.45 kg
Customs tariff
85361090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895362272
Basic packaging weight
0.45 kg
Basic packaging volume
0.072

Transport packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895416357
Transport packaging weight
4.66 kg
Transport packaging volume
0.73
Pallet quantity
1720
Pallet volume
125.56
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
100kA
Nominal current
225A
Size
Other
Utilization category
Other
ETIM Classification – Version 7.0
