004774015

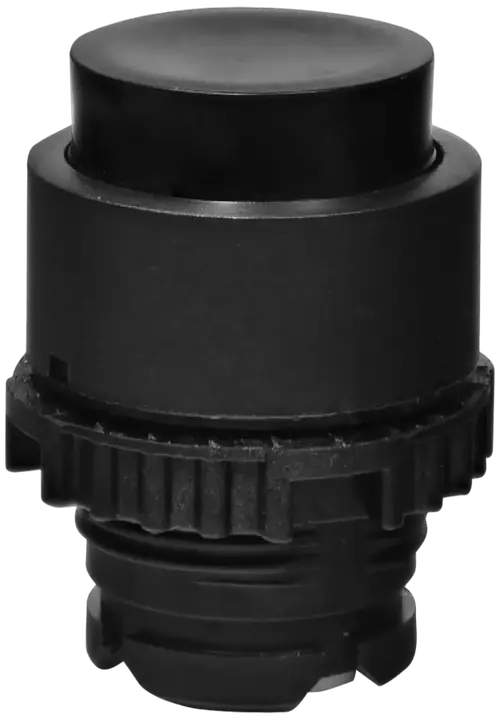

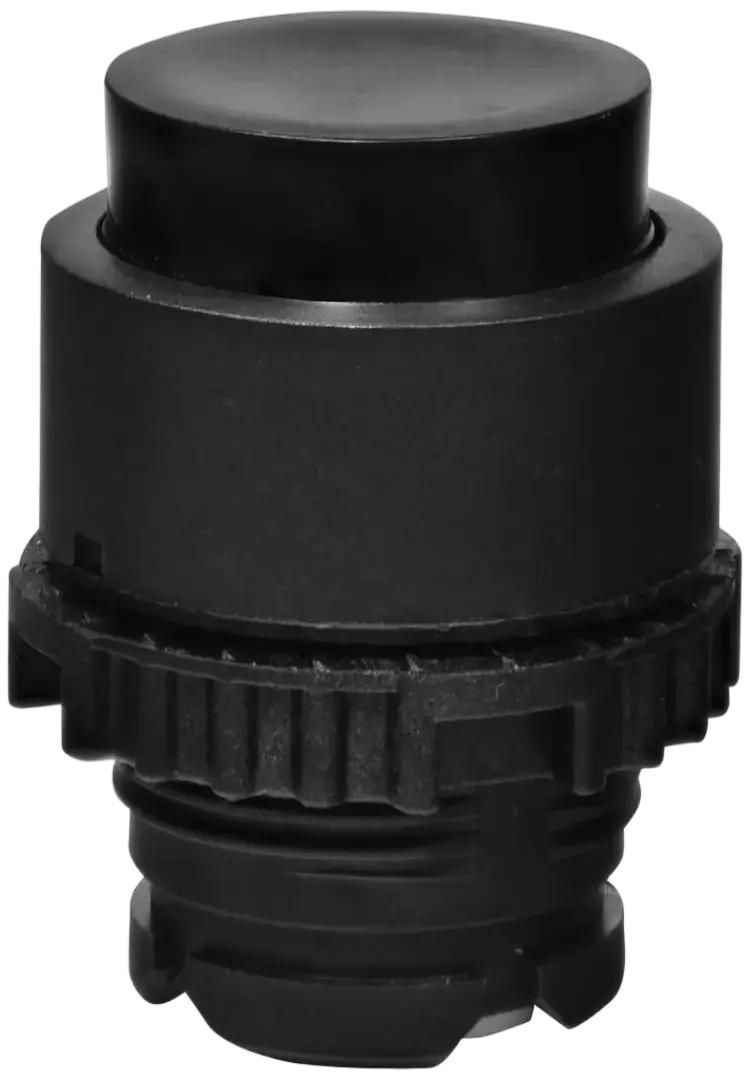

NSE-PBP-C Push button actuator
- ETI Code:
- 004774015
- Standards:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
- Application:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
- No. of NO contacts:
- 1
- Mechanical cycles:
- 3,000,000
- Approvals:
- CE
- Rated insulation voltage:
- 690 V
- IP rating:
- IP66
- Type description:
- Spring return, non-illuminated
- Function:
- Extended head pushbutton
- Color:
- Black
15 Logistics
Product
- Net weight of the product
- 0.017 kg
- Net width
- 30.5 mm
- Net height
- 30.5 mm
- Net depth
- 33 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7909712854778
- Transport packaging weight
- 0.021 kg
- Transport Packaging Dimensions Height
- 32.5 mm
- Transport Packaging Dimensions Width
- 130 mm
- Transport Packaging Dimensions Depth
- 200 mm
- Transport packaging volume
- 0.845 dm³
- Pallet quantity
- 1,080 pcs
- Customs tariff
- 85365080
