004774004

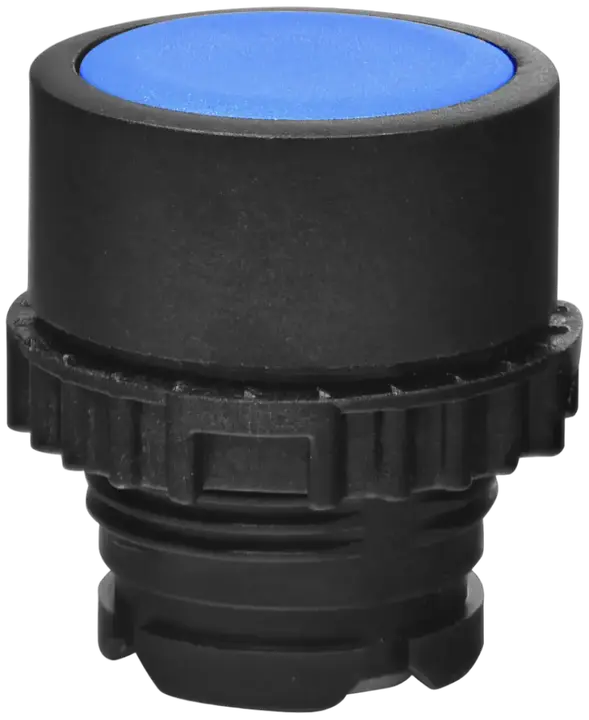

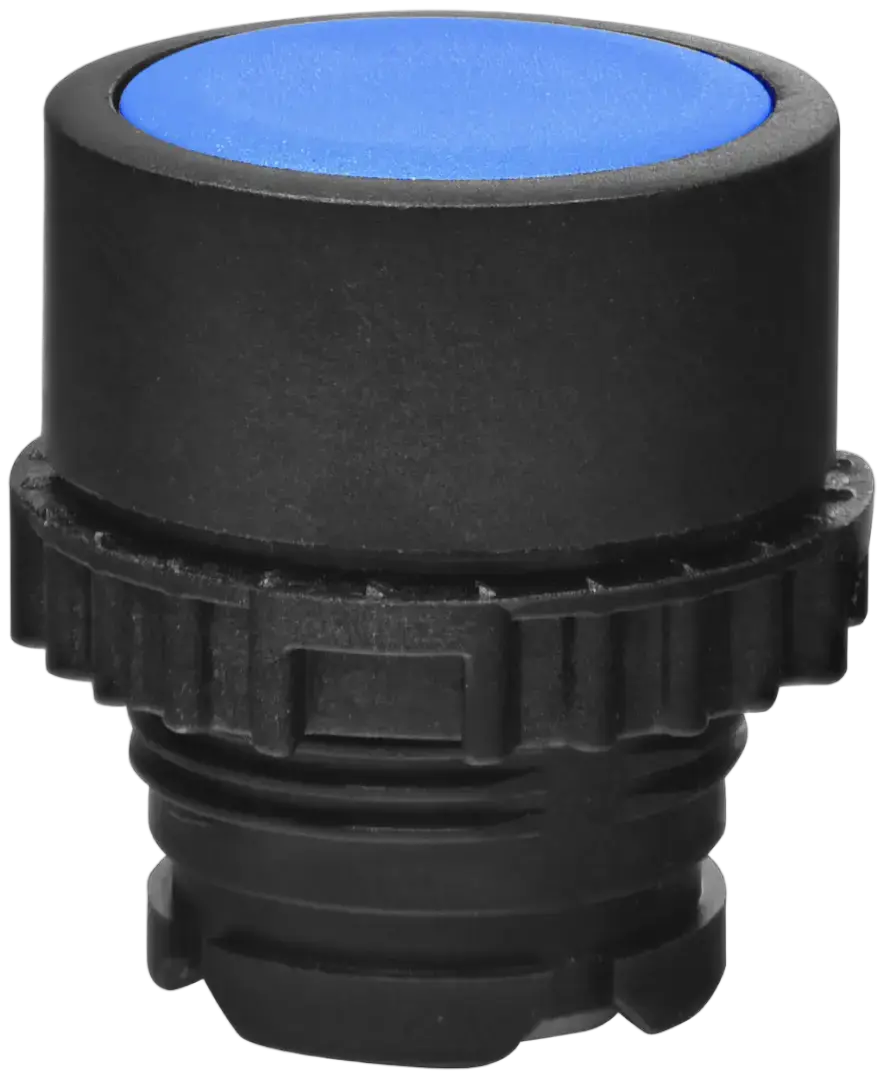

NSE-PBF-B Push button actuator
- ETI Code:
- 004774004
- Standards:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
- Application:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
- No. of NO contacts:
- 1
- Mechanical cycles:
- 3,000,000
- Approvals:
- CE
- Rated insulation voltage:
- 690 V
- IP rating:
- IP66
- Type description:
- Spring return, non-illuminated
- Function:
- Flush head pushbutton
- Color:
- Blue
18 Logistics
Product
- Net weight of the product
- 0.017 kg
- Net width
- 30.5 mm
- Net height
- 30.5 mm
- Net depth
- 26.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7909712854709
- Basic packaging weight
- 0.021 kg
- Basic packaging volume
- 0.845 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 17909712854706
- Transport packaging weight
- 0.21 kg
- Transport Packaging Dimensions Height
- 32.5 mm
- Transport Packaging Dimensions Width
- 250 mm
- Transport Packaging Dimensions Depth
- 350 mm
- Transport packaging volume
- 2.844 dm³
- Pallet quantity
- 2,700 pcs
- Customs tariff
- 85365080
