004774083

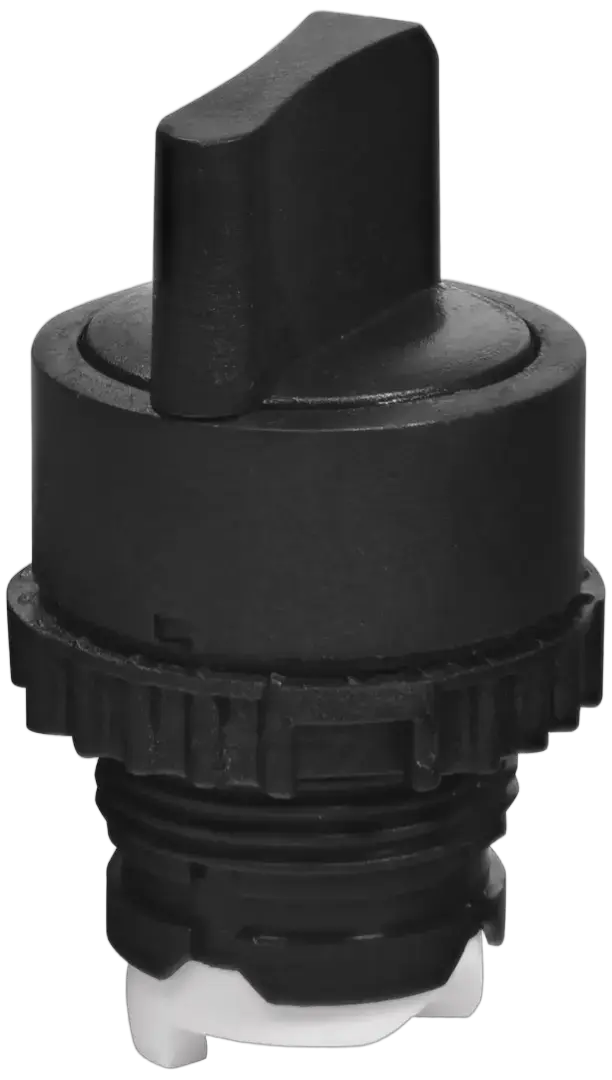

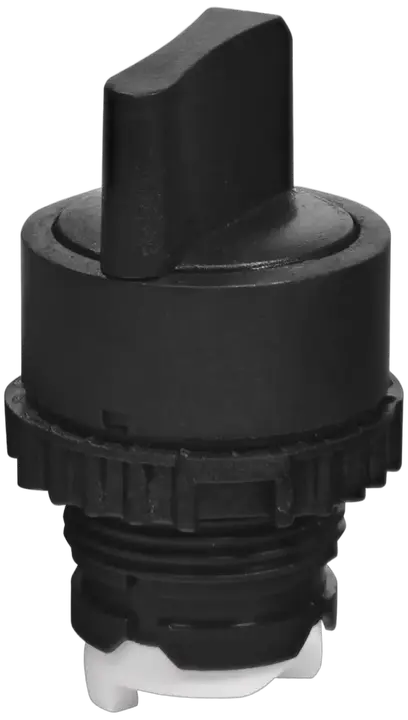

NSE-S2-R90 Switch selector actuator
- ETI Code:
- 004774083
- Standards:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
- Application:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
- Mechanical cycles:
- 1,000,000
- Approvals:
- CE
- Rated insulation voltage:
- 690 V
- IP rating:
- IP66
- Type description:
- Spring return, non-illuminated, 0-1
- Function:
- Two-position switch selector
- Color:
- Black
15 Logistics
Product
- Net weight of the product
- 0.022 kg
- Net width
- 43.1 mm
- Net height
- 43.1 mm
- Net depth
- 40.8 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7909712855164
- Transport packaging weight
- 0.025 kg
- Transport Packaging Dimensions Height
- 32.5 mm
- Transport Packaging Dimensions Width
- 130 mm
- Transport Packaging Dimensions Depth
- 200 mm
- Transport packaging volume
- 0.845 dm³
- Pallet quantity
- 1,080 pcs
- Customs tariff
- 85365080
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
18 Tags
004774083Switch selector actuatorNSE-S2-R90ETISIGNSE Actuators and indicatorsNSE Actuators and indicatorsNon-illuminated actuatorsNon-illuminated actuatorsSwitch x2 (Position selector)InternationalAutomation, signaling and control devicesActuators and indicators ETISIGActuatorsColor: BlackType description: Spring return, non-illuminated, 0-1Function: Two-position switch selectorIP rating: IP66Switch selector actuator Type description: Spring return, non-illuminated, 0-1 Function: Two-position switch selector Color: Black
