004774084

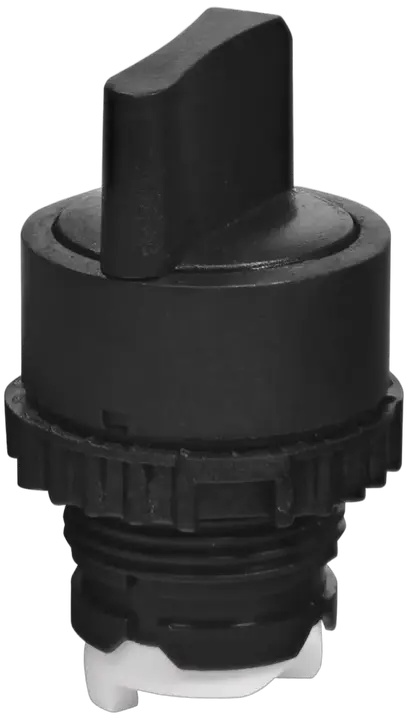

NSE-S3-F45 Switch selector actuator
- ETI Code:
- 004774084
- Standards:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
- Application:
- IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5
- Mechanical cycles:
- 1,000,000
- Approvals:
- CE
- Rated insulation voltage:
- 690 V
- IP rating:
- IP66
- Type description:
- Latch, non-illuminated, 1-0-2
- Function:
- Three-position switch selector
- Color:
- Black
21 Logistics
Product
- Net weight of the product
- 0.022 kg
- Net width
- 43.1 mm
- Net height
- 43.1 mm
- Net depth
- 40.8 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7909712855171
- Basic packaging weight
- 0.025 kg
- Basic Packaging Dimensions Height
- 32.5 mm
- Basic Packaging Dimensions Width
- 130 mm
- Basic Packaging Dimensions Depth
- 200 mm
- Basic packaging volume
- 0.845 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 17909712855178
- Transport packaging weight
- 0.25 kg
- Transport Packaging Dimensions Height
- 32.5 mm
- Transport Packaging Dimensions Width
- 250 mm
- Transport Packaging Dimensions Depth
- 350 mm
- Transport packaging volume
- 2.844 dm³
- Pallet quantity
- 2,700 pcs
- Customs tariff
- 85365080
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
