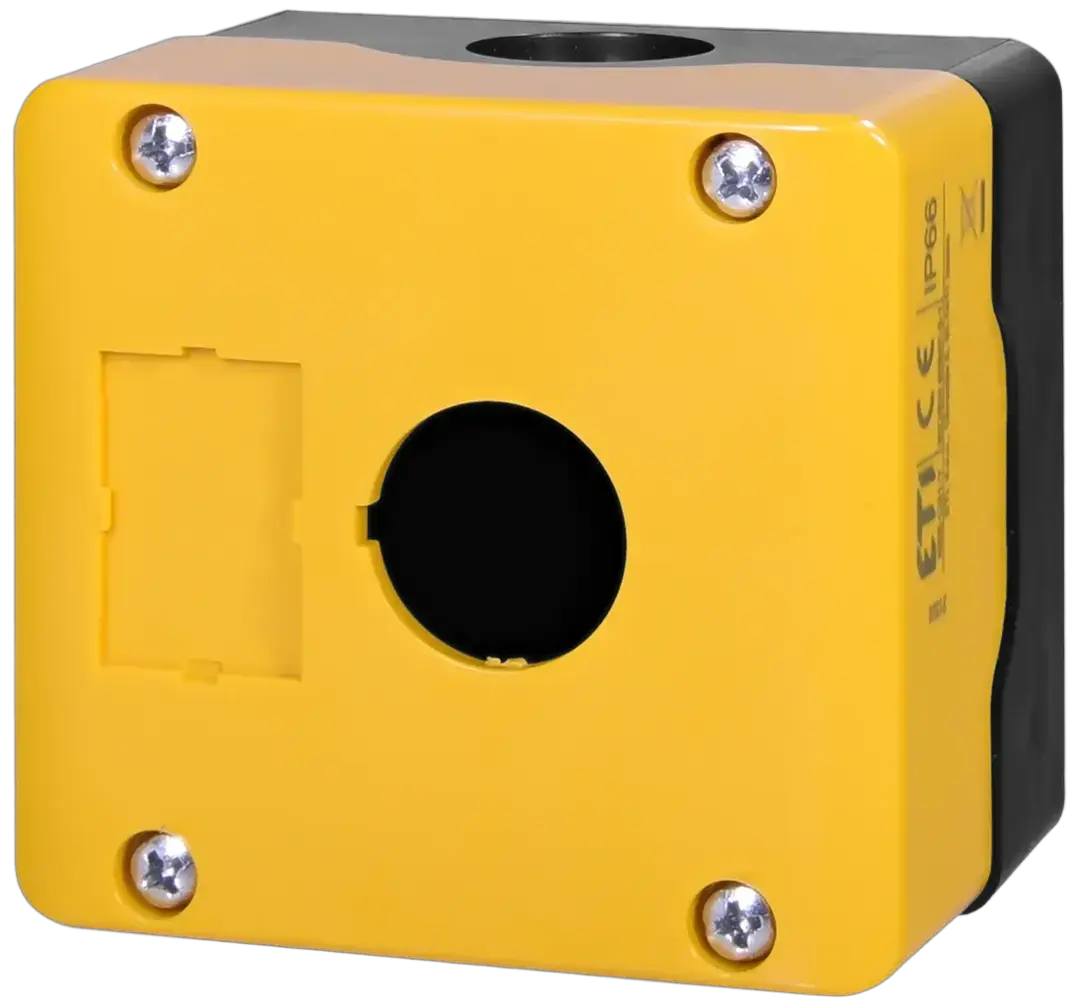

Enclosure NSE-CS1-Y 004774150

Specifications

ETI Code:
004774150
Description:
NSE-CS1-Y
Class name:
Enclosure
Color:
Yellow,RAL 1003,Black,RAL 9005
function:
CONTROL STATION ENCLOSURE

Documents

Product

Net weight of the product
0.125  kg
Customs tariff
85381000
logis_net_width
74  mm
logis_net_height
79  mm
logis_net_depth
58  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7909712855591
Transport packaging weight
0.13  kg
Pallet quantity
1905

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004774150 Flush mounted enclosure Enclosure, NSE-CS1-Y ETISIG NSE Push button stations and enclosures NSE Push button stations and enclosures Enclosures Enclosures Enclosures Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Push button stations and enclosures with accessories Enclosures Function Control station enclosure Type Emergency, 1 hole For use with Integral pushbuttons and LED indicators IP rating IP66 (NEMA 4X) Connection ØM20 PG13,5 1 2” and ØM16 3 8” Color Yellow (RAL 1003) Black (RAL 9005) Standards IEC 60947-5-1, IEC 50102, IEC 60529, UL 508, UL 50 Application External Internal Working temperature -25 ... 70°C Material Polycarbonate Approvals CE Enclosure NSE Control station enclosure Yellow (RAL 1003) / Black (RAL 9005)

Accessories 27

>
>
