004774152

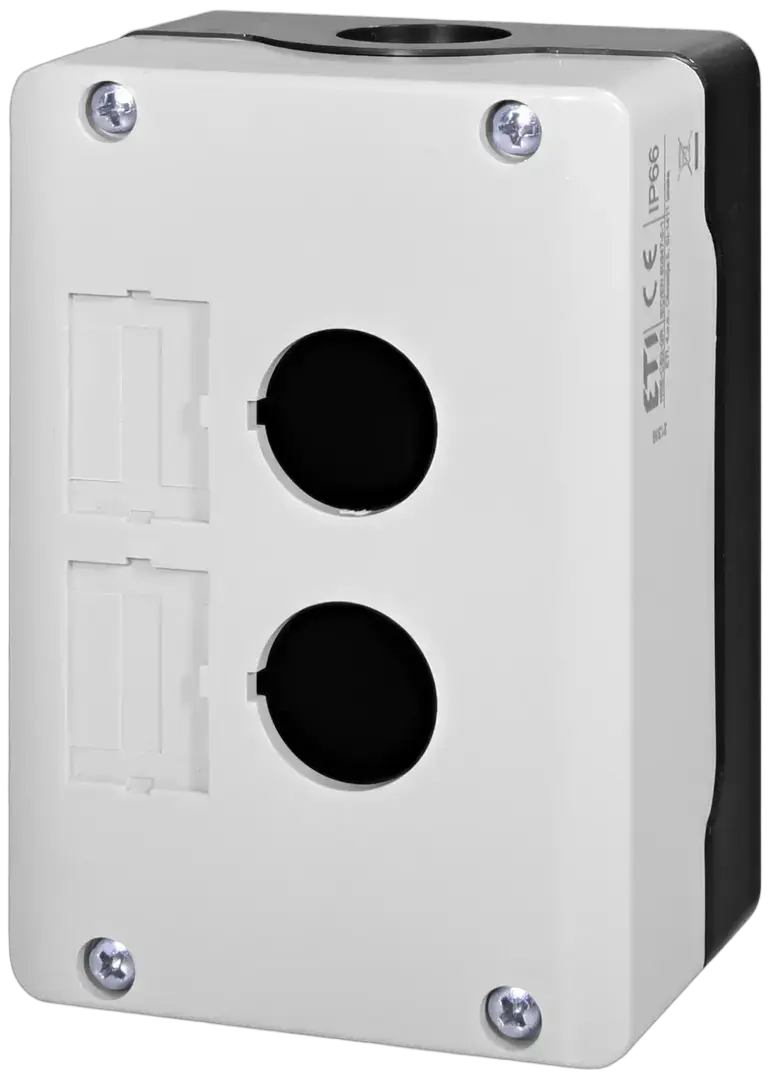

NSE-CS2-GR Enclosure
- ETI Code:
- 004774152
- Function:
- Control station enclosure
- To use with:
- Integral pushbuttons and LED indicators
- Color:
- Grey, Black
- Standards:
- IEC 60947-5-1, IEC 50102, IEC 60529, UL 508, UL 50
- Application:
- External / Internal
- Approvals:
- CE
- Working Temperature:
- -25-70 °C
- Type description:
- 2 holes
- IP rating:
- IP66(NEMA4X)
- Material:
- Polycarbonate
14 Logistics
Product
- Net weight of the product
- 0.16 kg
- Net width
- 117 mm
- Net height
- 79.1 mm
- Net depth
- 58.2 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7909712855614
- Transport packaging weight
- 0.17 kg
- Transport Packaging Dimensions Height
- 85 mm
- Transport Packaging Dimensions Width
- 62 mm
- Transport Packaging Dimensions Depth
- 151 mm
- Transport packaging volume
- 0.796 dm³
- Pallet quantity
- 1,256 pcs
- Customs tariff
- 85381000
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
18 Tags
004774152EnclosureNSE-CS2-GRETISIGNSE Push button stations and enclosuresNSE Push button stations and enclosuresEnclosuresEnclosuresEnclosuresInternationalAutomation, signaling and control devicesActuators and indicators ETISIGEnclosuresMaterial: PolycarbonateColor: Black, Grey, RAL 7035, RAL 9005Function: Control station enclosureIP rating: IP66(NEMA4X)Enclosure
Similar Products 5 All Products

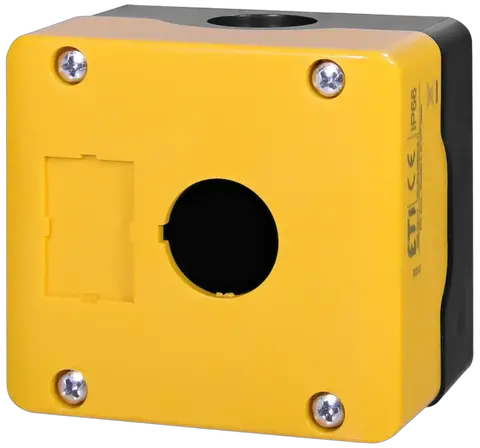

004774150
