001690902

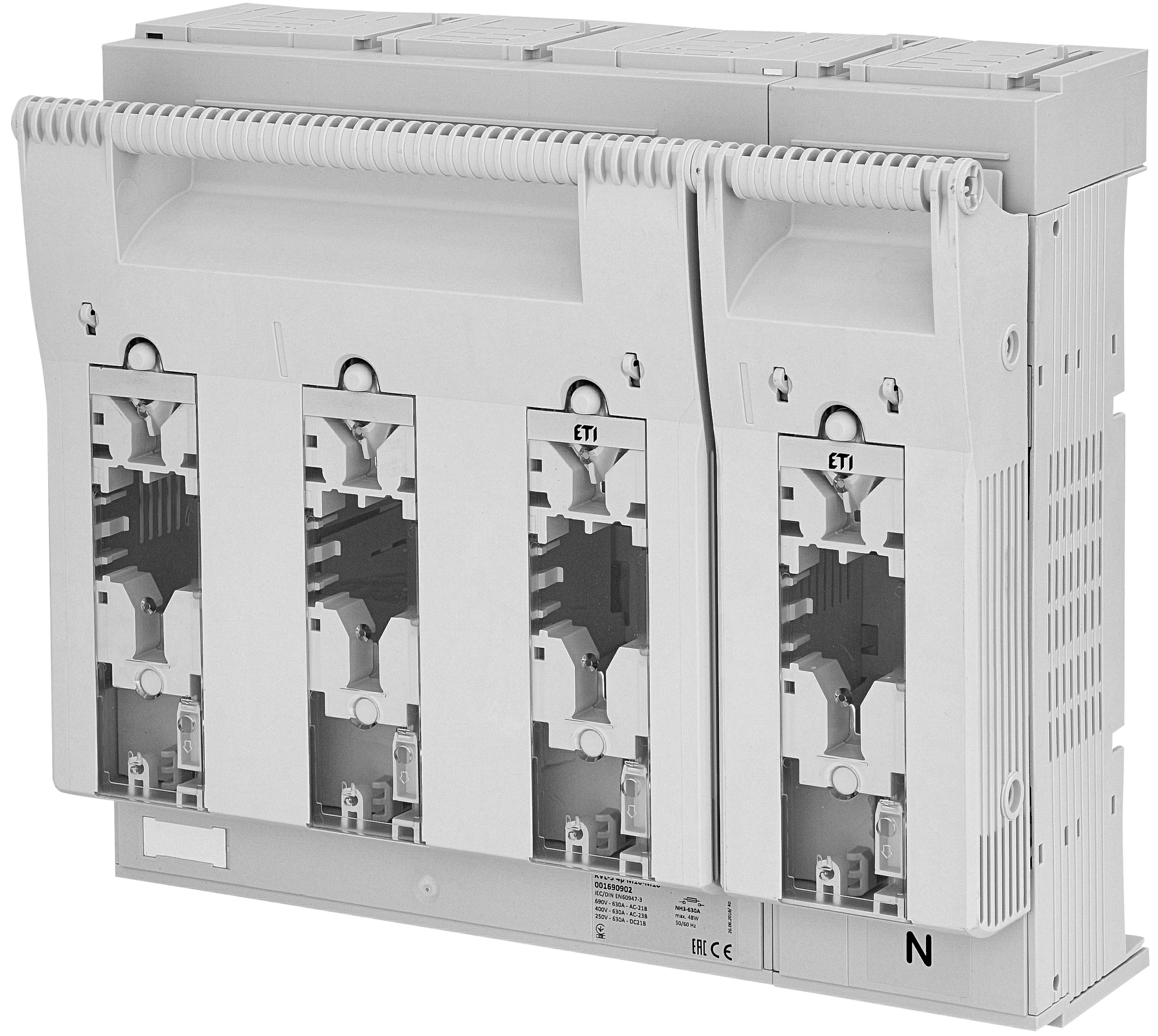

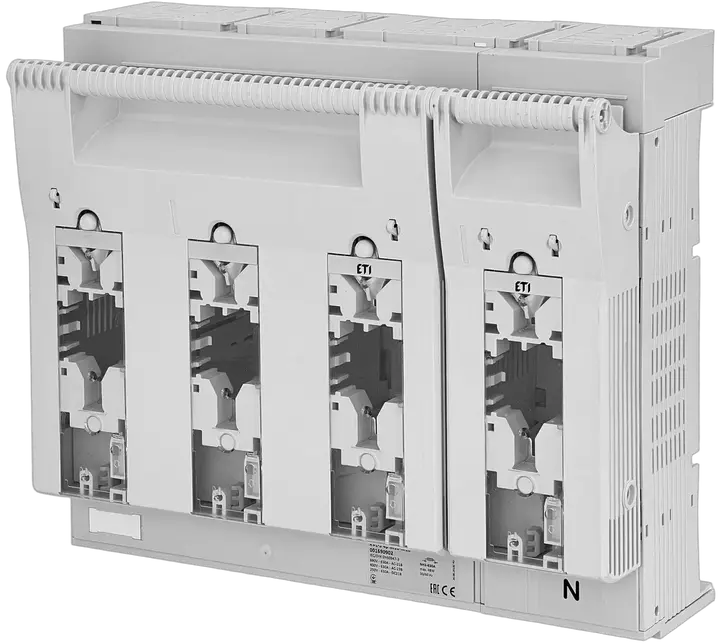

KVL-3 4p M10-M10 Fuse switch disconnector
- ETI Code:
- 001690902
- Type of installation:
- Base plate mounting
- Size:
- NH3
- Rated current:
- 630 A
- Number of poles:
- 4
- Rated AC voltage:
- 690 V
- Rated DC voltage:
- 440 V
- Utilization category:
- AC-23B, DC-22B
- Type description:
- KVL
14 Logistics
Product
- Net weight of the product
- 5.76 kg
- Net width
- 341.3 mm
- Net height
- 306.7 mm
- Net depth
- 142.46 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895823001
- Transport packaging weight
- 5.55 kg
- Transport Packaging Dimensions Height
- 336 mm
- Transport Packaging Dimensions Width
- 359 mm
- Transport Packaging Dimensions Depth
- 227 mm
- Transport packaging volume
- 27.382 dm³
- Pallet quantity
- 36 pcs
- Customs tariff
- 85363090
8 ETIM
- Version as safety switch
- ✓
- Suitable for floor mounting
- ✓
- Rated permanent current Iu
- 630 A
- Suitable for fuses
- NH3
- Type of control element
- Cover grip
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 4
- Version as main switch
- ✓
ETIM Classification – Version 9.0
