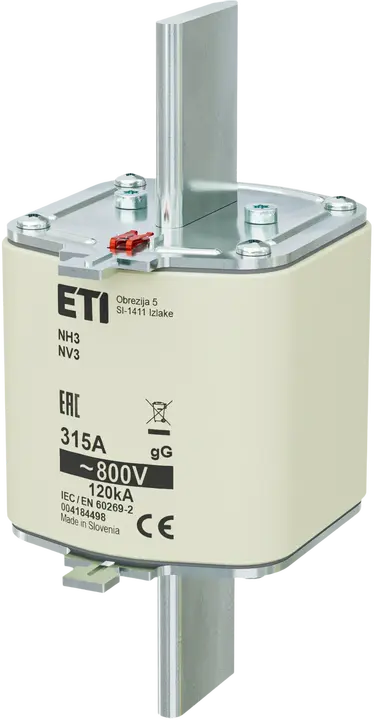

*NH3 gG 315A/800V Fuse link
- ETI Code:
- 004184498
- Fuse type:
- NH
- Size:
- NH3
- Rated current:
- 315 A
- Time-Current Characteristic:
- gG
- Indicator:
- Top fuse status indicator
- Rated AC voltage:
- 800 V
- Breaking capacity AC:
- 120 kA
- Power dissipation (0,7xIn):
- 12.8 W
- Power dissipation:
- 29 W
- Prearcing joule integral (A2s):
- 140,000
- Operating joule integral (A2s):
- 1,340,000
- Standards:
- IEC 60269-2
- Application:
- For cable protection on a.c. side of PV inverter
22 Logistics
Product
- EAN code for a single product
- 3838895901037
- Net weight of the product
- 1,300 g
- Net width
- 74 mm
- Net height
- 151.7 mm
- Net depth
- 87.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895837008
- Basic packaging weight
- 4.05 kg
- Basic Packaging Dimensions Height
- 97 mm
- Basic Packaging Dimensions Width
- 244 mm
- Basic Packaging Dimensions Depth
- 161 mm
- Basic packaging volume
- 3.811 dm³
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838895837015
- Transport packaging weight
- 20.6 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 360 pcs
- Customs tariff
- 85361090
6 ETIM
- Rated switching capacity AC
- 120 kA
- Voltage type
- AC
- Rated voltage AC
- 800 V
- Type of fuse status indicator
- Top fuse status indicator
- Rated current
- 315 A
- Utilization category
- gG (cable protection/equipment protection)
