001690914

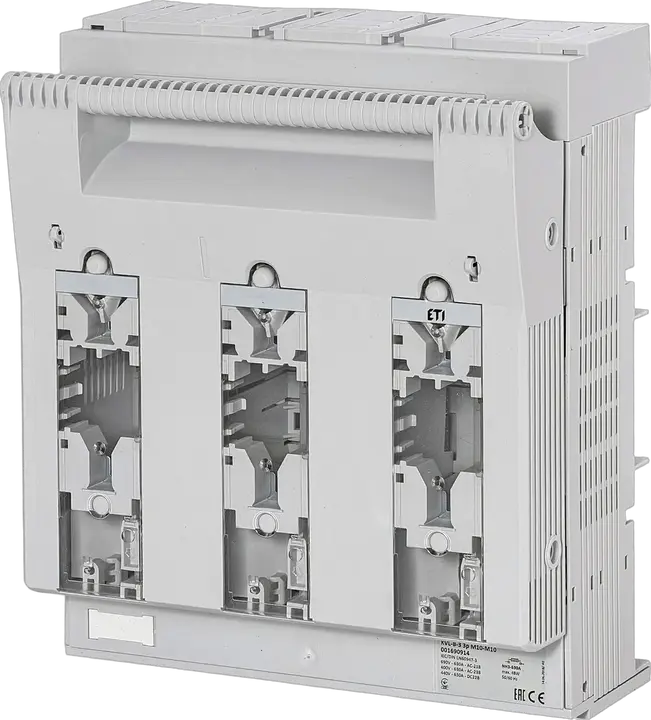

KVL-B-3 3p M10-M10 Fuse switch disconnector
- ETI Code:
- 001690914
- Size:
- NH3
- Voltage type:
- AC/DC
- Tightening torque:
- 35-30 Nm
- Function:
- Fuse switch disconnector
- Number of poles:
- 3
- IP rating:
- IP20
- Type of Installation:
- Busbar mounting
- Utilization category:
- AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
- Overvoltage Category:
- III
- Rated Frequency:
- 40/60 Hz
- Max Altitude:
- ≤ 2000 m
- Rated operational voltage (DC):
- 440 V
- Rated conditional short-circuit current Inc:
- 120 kA
- Ambient temperature:
- -25/55 °C
- Rated Insulation Voltage:
- 800 V
- Rated short-time withstand current Icw at 1s:
- 15 kA
- Rated operational current Ie AC-21 A/B at 690V:
- 630 A
- Power dissipation:
- 86 W
- Max. rated operational voltage (AC):
- 690 V
- Terminal screw:
- M10
- Pollution Degree:
- 3
- Max Permissable Power Dissipation per Fuse Link:
- 48 W
- Rated impulse withstand voltage Uimp:
- 8 kV
14 Logistics
Product
- Net weight of the product
- 4.13 kg
- Net width
- 249.5 mm
- Net height
- 302.8 mm
- Net depth
- 165.22 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895823049
- Transport packaging weight
- 4.014 kg
- Transport Packaging Dimensions Height
- 313 mm
- Transport Packaging Dimensions Width
- 256 mm
- Transport Packaging Dimensions Depth
- 183 mm
- Transport packaging volume
- 14.663 dm³
- Pallet quantity
- 70 pcs
- Customs tariff
- 85363090
9 ETIM
- Version as safety switch
- Yes
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current Iu
- 630 A
- Suitable for fuses
- NH3
- Type of control element
- Cover grip
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Version as main switch
- Yes
ETIM Classification – Version 9.0
