001690916

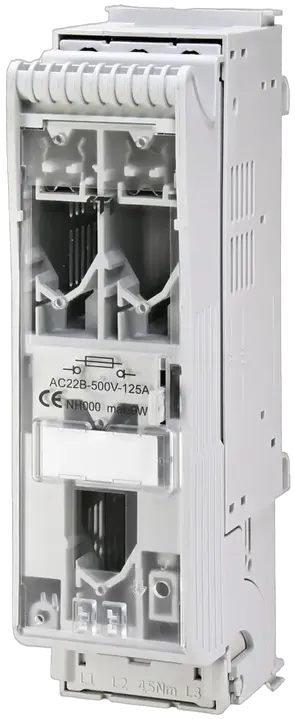

KVL-B-000 3p F50 Top Fuse switch disconnector
- ETI Code:
- 001690916
- Size:
- NH000
- Voltage type:
- AC
- Function:
- Fuse switch disconnector
- Number of poles:
- 3
- IP rating:
- IP20
- Type of Installation:
- Busbar mounting
- Utilization category:
- AC-22B, AC-21B
- Overvoltage Category:
- III
- Rated Frequency:
- 40/60 Hz
- Max Altitude:
- ≤ 2000 m
- Rated conditional short-circuit current Inc:
- 80 kA
- Mechanical cycles:
- 1,400
- Ambient temperature:
- -25/55 °C
- Rated Insulation Voltage:
- 800 V
- Rated short-time withstand current Icw at 1s:
- 5 kA
- Rated operational current Ie AC-21 A/B at 690V:
- 80 A
- Electrical cycles:
- 200
- Power dissipation:
- 12 W
- Max. rated operational voltage (AC):
- 690 V
- Clamping cross-section:
- 1.5-50 mm²
- Pollution Degree:
- 2
- Max Permissable Power Dissipation per Fuse Link:
- 12 W
- Clamp material:
- Cu
- Rated impulse withstand voltage Uimp:
- 6 kV
14 Logistics
Product
- Net weight of the product
- 0.58 kg
- Net width
- 53.3 mm
- Net height
- 207.2 mm
- Net depth
- 141.5 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895908067
- Transport packaging weight
- 0.781 kg
- Transport Packaging Dimensions Height
- 220 mm
- Transport Packaging Dimensions Width
- 145 mm
- Transport Packaging Dimensions Depth
- 70 mm
- Transport packaging volume
- 2.233 dm³
- Pallet quantity
- 500 pcs
- Customs tariff
- 85363090
10 ETIM
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current Iu
- 125 A
- Suitable for fuses
- NH000
- Type of control element
- Other
- Conditioned rated short-circuit current Iq
- 80 kA
- Cable entry
- Other
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Position control element
- Other
ETIM Classification – Version 9.0
