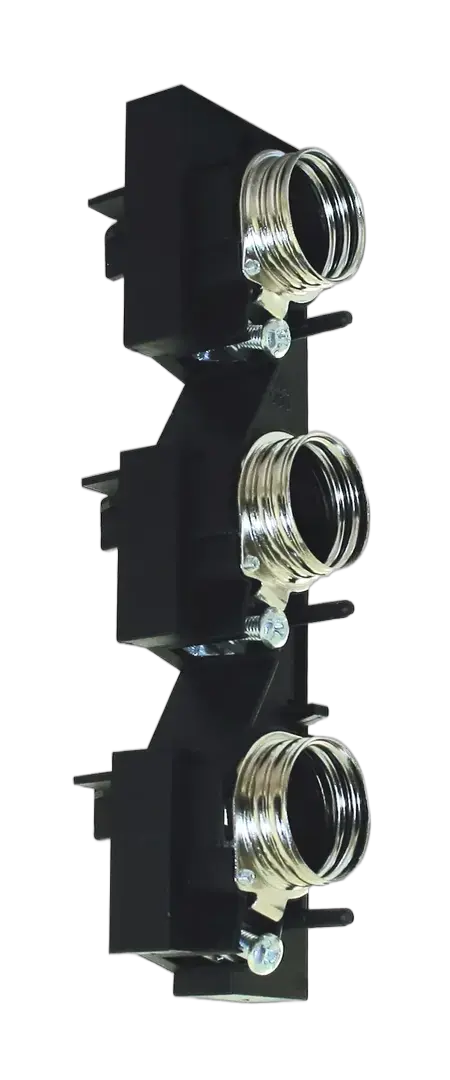

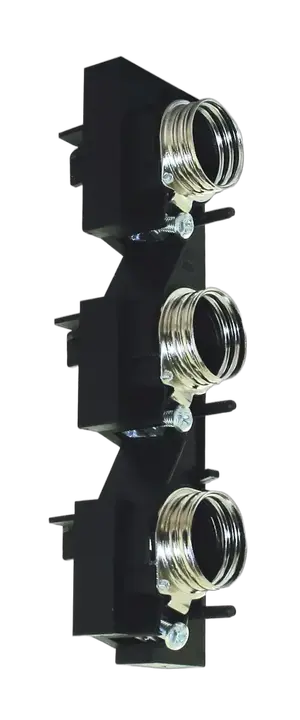

PTV-B DIII-54/333-5 Fuse holder
- ETI Code:
- 001696053
- Type description:
- DIII
- Function:
- Fuse-bases for adapter sleeve
- Tightening torque:
- 2.6 Nm
- Terminal type:
- Elevator terminal
- Number of poles:
- 3
- Type of Installation:
- Busbar mounting
- Width:
- 54 mm
15 Logistics
Product
- EAN code for a single product
- 3838400071811
- Net weight of the product
- 0.202 kg
- Net width
- 53.8 mm
- Net height
- 181 mm
- Net depth
- 55.1 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895738763
- Transport packaging weight
- 2.064 kg
- Transport Packaging Dimensions Height
- 228 mm
- Transport Packaging Dimensions Width
- 236 mm
- Transport Packaging Dimensions Depth
- 105 mm
- Transport packaging volume
- 5.65 dm³
- Pallet quantity
- 1,350 pcs
- Customs tariff
- 85363030
2 ETIM
- Mounting method
- Other
- Bus-mounting type
- Yes
1 Software & drivers
19 Tags
Similar Products 28 All Products
DVL-60/183
- Class name
- Fuse switch disconnector
- Function
- Fuse-switch disconnector
- Tightening torque
- 2.6 Nm
- Height
- Terminal type
- Elevator terminal

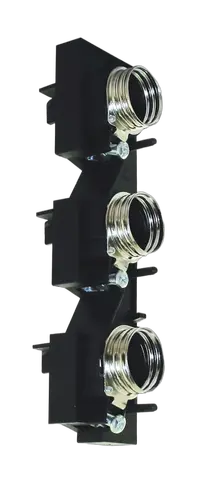

PTV-B D02-27/183-5
