004771291 Obsolete

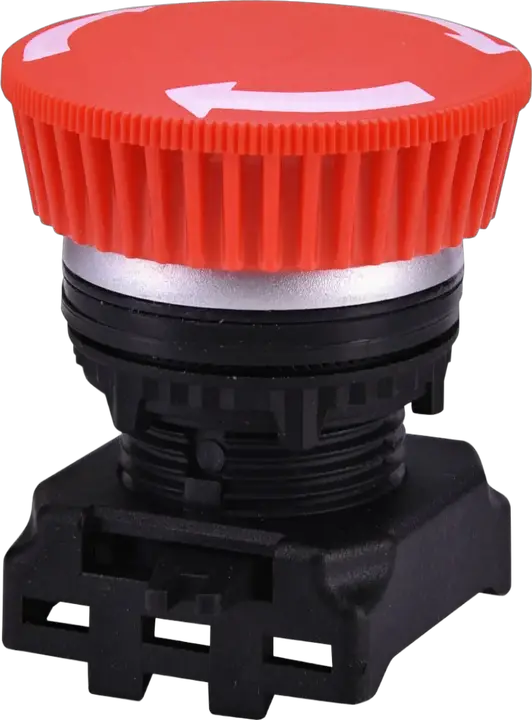

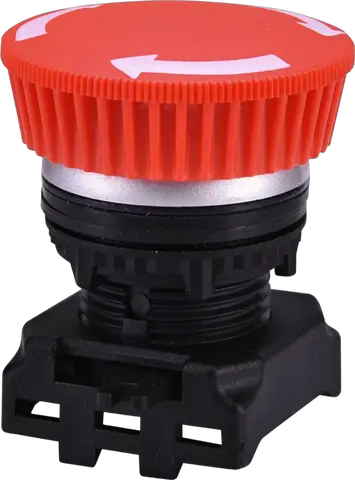

*EGM-T-RCh Illu. Push button actuator

ETI Code:: 004771291
Rated current:: 2 A
Rated frequency:: 50/60 Hz
Rated cross section:: 1-2.5 mm²
Thermal current Ith:: 10 A
Mechanical cycles:: 1,000,000
Electrical cycles:: 100,000
Storage temperature:: -25-70 °C
Working temperature:: -30-60 °C
Voltage type:: AC
HV test:: 2.5 kV
Rated insulation voltage:: 600 V
IP rating:: IP65
Type description:: Push button actuators-mushroom head 40mm, push-turn function
Function:: Non-illuminated actuators
Color:: Red
Rated AC voltage:: 230 V
Catalogue group:: Actuators and indicators E-line

Product

EAN code for a single product: 3838895807728
Net weight of the product: 0.024 kg
Net width: 42.3 mm
Net height: 40 mm
Net depth: 49.22 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838895780717
Basic packaging weight: 0.3 kg
Basic packaging volume: 1.57 dm³

Transport Packaging

Transport packaging quantity: 140 pcs
EAN code for a transport packaging: 3838895780724
Transport packaging weight: 4.2 kg
Transport packaging volume: 21.98 dm³
Pallet quantity: 11,200 pcs
Customs tariff: 85389099

Unlocking method: Turn-release
Colour button: Red
Degree of protection (IP): IP65
Diameter cap: 40 mm
Hole diameter: 22.5 mm

ETIM Classification – Version 9.0
