002431002
Obsolete

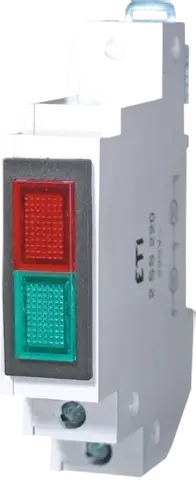

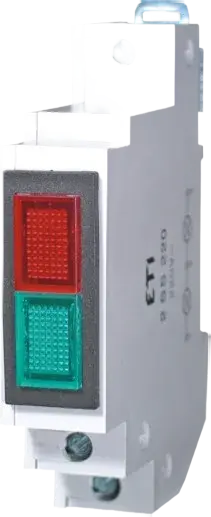

*2 SS 220 RED/GREEN Signal lamp
- ETI Code:
- 002431002
- Depth:
- 68 mm
- Application:
- IEC/EN 60947-1, IEC/EN 60947-3
- Catalogue Group:
- Push-button & Lamp
- Catalogue Subgroup:
- Signal light 2 SS 220
- Function:
- Signal light 2 SS 220
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 24 V
- IP rating:
- IP20
- Max input cross-section:
- 6 mm²
- Rated Frequency:
- 50/60 Hz
- Standards:
- IEC/EN 60947-1, IEC/EN 60947-3
- Utilization category:
- AC-22A
2 Documents
12 Logistics
Product
- Net weight of the product
- 0.052 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 12 pcs
- EAN code for a basic packaging
- 3838895299295
- Basic packaging weight
- 0.59 kg
- Basic packaging volume
- 1.47 dm³
Transport Packaging
- Transport packaging quantity
- 108 pcs
- EAN code for a transport packaging
- 3838895299301
- Transport packaging weight
- 5.6 kg
- Transport packaging volume
- 17.4 dm³
- Pallet quantity
- 7,020 pcs
- Customs tariff
- 85365080
8 ETIM
- Built-in depth
- 68 mm
- Voltage type
- AC
- Colour calotte
- Other
- Lamp socket
- E10
- Lamp type
- Incandescent lamp
- Degree of protection (IP)
- IP20
- Rated voltage
- 230 V
- Width in number of modular spacings
- 1
ETIM Classification – Version 9.0
