002471551

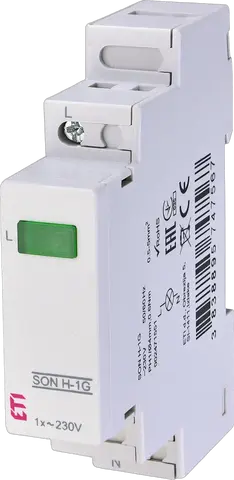

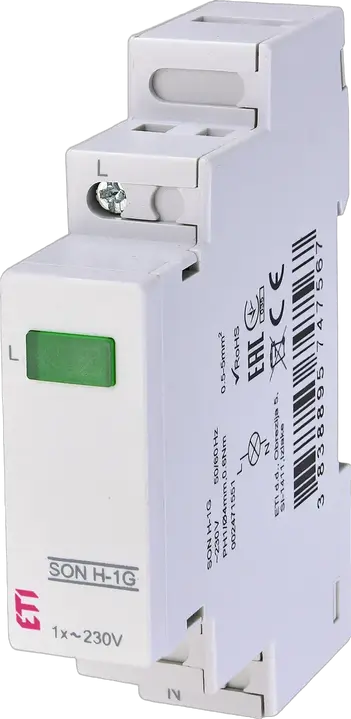

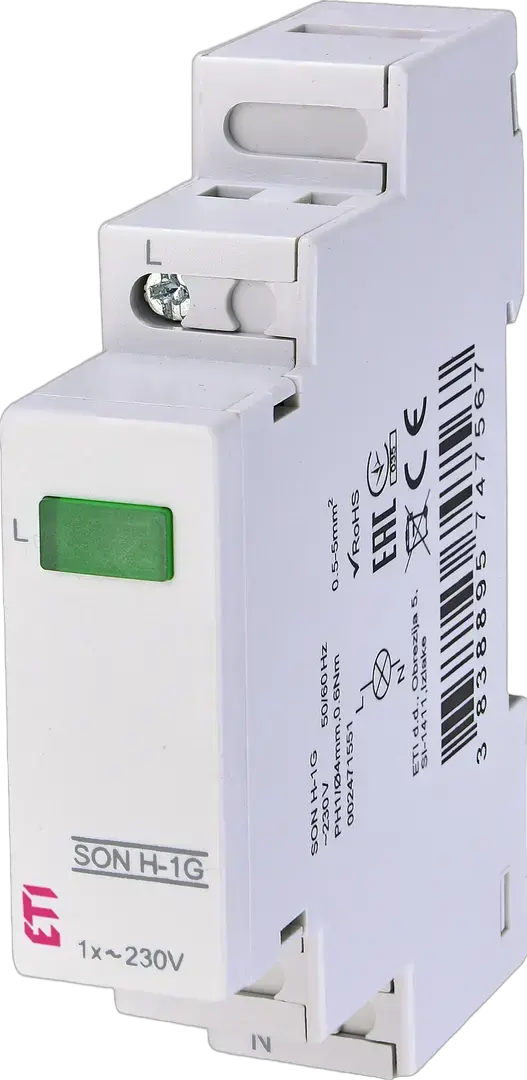

SON H-1G Indicator
- ETI Code:
- 002471551
- Power consumption:
- 0.267@240 W
- Function:
- Voltage detector
- Application:
- Mounting in distribution boards on a TH35 rail
- Indicator:
- LED Green
- Voltage type:
- AC
- Supply voltage:
- 230 V
- Rated frequency:
- 50/60 Hz
- Clamping cross-section:
- 0.5-2.5 mm²
- Rated cross section:
- 1-4 mm²
- IP rating:
- IP20
- Type of installation:
- DIN rail 35 mm
- Number of poles:
- 1
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.04 kg
- Net width
- 18 mm
- Net height
- 85.9 mm
- Net depth
- 69.63 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895747567
- Basic packaging weight
- 0.058 kg
- Basic packaging volume
- 0.176 dm³
Transport Packaging
- Transport packaging quantity
- 400 pcs
- EAN code for a transport packaging
- 3838895747574
- Transport packaging weight
- 25.2 kg
- Transport packaging volume
- 100.8 dm³
- Pallet quantity
- 8,000 pcs
- Customs tariff
- 85312020
4 ETIM
- Type of current
- AC
- Colour of lamp hood
- Green
- Degree of protection (IP)
- IP20
- Nominal voltage
- 230 V
ETIM Classification – Version 9.0
