002471652

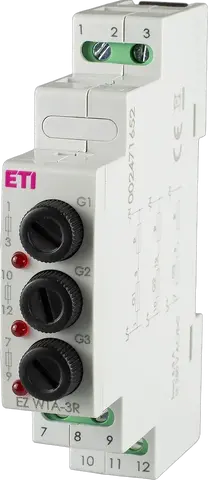

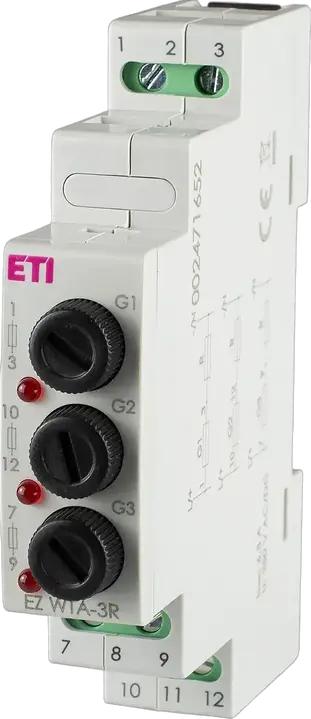

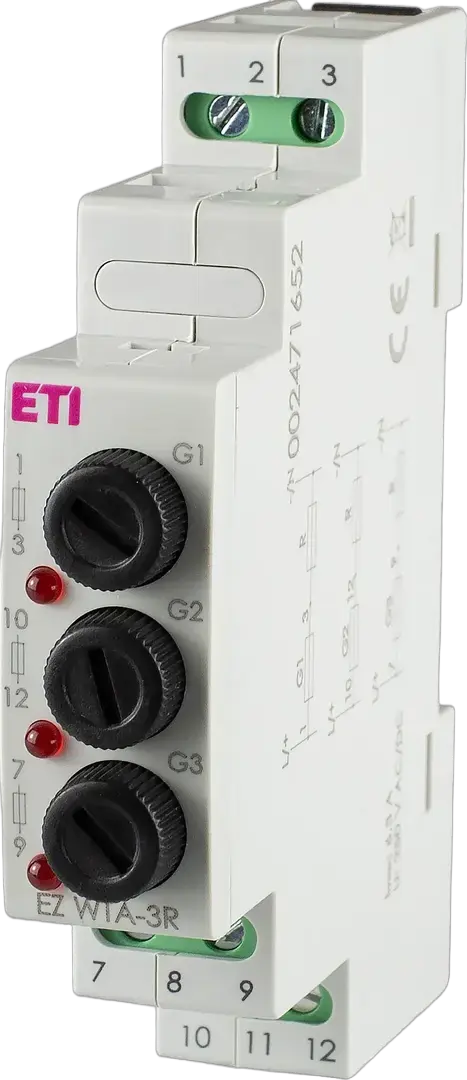

EZ WTA-3R Fuse holder
- ETI Code:
- 002471652
- Power consumption:
- 0.2/240 W
- Function:
- Voltage detector
- Application:
- Mounting in distribution boards on a TH35 rail
- Indicator:
- LED Red
- Voltage type:
- AC
- Supply voltage:
- 230 V
- Rated frequency:
- 50/60 Hz
- Rated current:
- 6.3 A
- Clamping cross-section:
- 0.5-2.5 mm²
- IP rating:
- IP20
- Type of installation:
- DIN rail 35 mm
- Number of poles:
- 1
3 Documents
18 Logistics
Product
- Net weight of the product
- 0.065 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400104328
- Basic packaging weight
- 0.07 kg
- Basic Packaging Dimensions Height
- 20 mm
- Basic Packaging Dimensions Width
- 95 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.133 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838400104335
- Transport packaging weight
- 0.9 kg
- Transport Packaging Dimensions Height
- 104 mm
- Transport Packaging Dimensions Width
- 73 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 2.278 dm³
- Pallet quantity
- 5,268 pcs
- Customs tariff
- 85361010
6 ETIM
- Type of current
- AC/DC
- Dimensions glass fuse
- 5x20 mm
- Mounting method
- Other
- Connection type
- Screw connection
- Rated voltage
- 250 V
- Rated current
- 6.3 A
ETIM Classification – Version 9.0
24 Tags
002471652Fuse holderEZ WTA-3REVE/ETIRELBuild-in deviceEVESYSEVESYSDIN socketDIN socketInternationalAutomation, signaling and control devicesModular switches and indicators EVEVoltage type: ACClamping cross-section: 0.5 mm²-2.5 mm²Application: Mounting in distribution boards on a TH35 railFunction: Voltage detectorNumber of poles: 1IP rating: IP20Type of installation: DIN rail 35 mmSupply voltage: 230 V-230 VRated current: 6.3 A/6.3 AIndicator: LED RedRated frequency: 50 Hz/60 HzFuse holder Function: Voltage detector Application: Mounting in distribution boards on a TH35 rail Indicator: LED Red Voltage type: AC Supply voltage: 230 V-230 V Rated frequency: 50 Hz/60 Hz Rated current: 6.3 A/6.3 A Clamping cross-section: 0.5 mm²-2.5 mm² IP rating: IP20 Type of installation: DIN rail 35 mm Number of poles: 1
