760141108 Obsolete

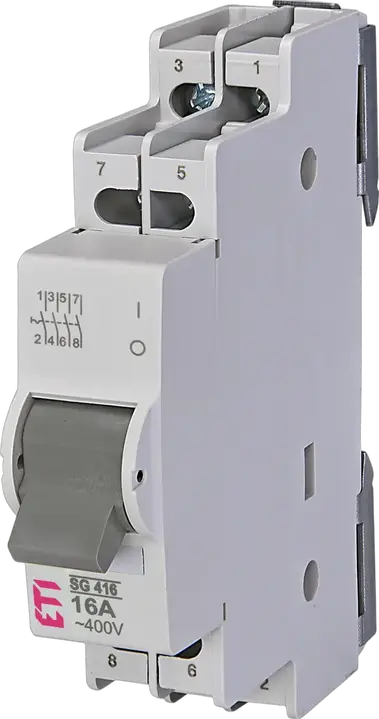

*SG 416 4pol 16A Switch

ETI Code:: 760141108
Application:: IEC/EN 60947-1, IEC/EN 60947-3
Catalogue Group:: Control switch
Catalogue Subgroup:: Switch 1-0, Switch 1-0 with control light
Function:: Switch
Rated current:: 16 A
Rated AC voltage:: 400 V
Rated DC voltage:: 24 V
Number of poles:: 4
IP rating:: IP20
Max input cross-section:: 6 mm²
Rated Frequency:: 50/60 Hz
Standards:: IEC/EN 60947-1, IEC/EN 60947-3
Utilization category:: AC-22A

Accessories

Product

EAN code for a single product: 3838895792802
Net weight of the product: 56.3 g
Net width: 17.5 mm
Net height: 84.1 mm
Net depth: 71.49 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 12 pcs
EAN code for a basic packaging: 3838895792819
Basic packaging weight: 1.08 kg
Basic packaging volume: 1.85 dm³

Transport Packaging

Transport packaging quantity: 60 pcs
EAN code for a transport packaging: 3838895806943
Transport packaging weight: 5.53 kg
Transport packaging volume: 10.971 dm³
Pallet quantity: 3,960 pcs
Customs tariff: 85365080

Eplan

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.

Accessories 1 All Accessories

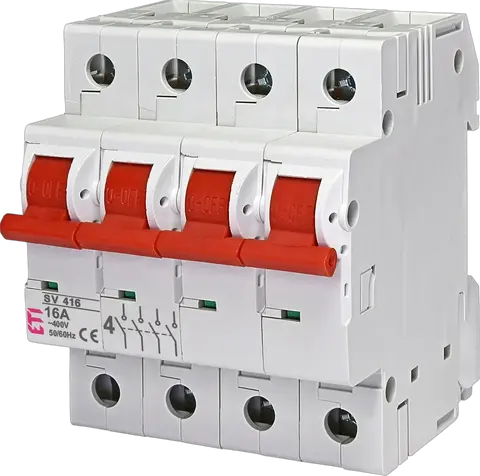

002423421
