760414109 Obsolete

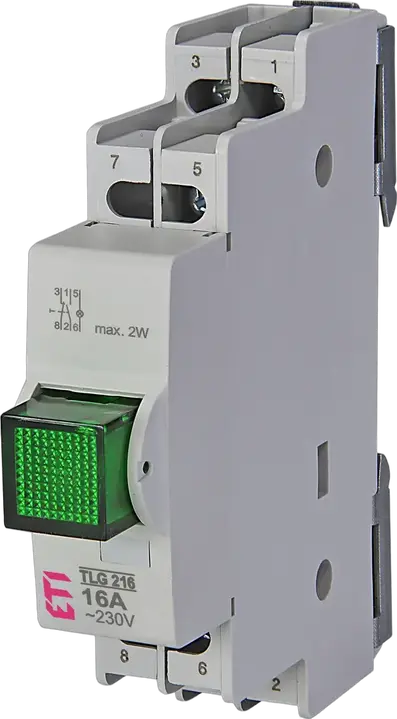

*TLG 216 2p 16A green Push-button with light

ETI Code:: 760414109
Application:: IEC/EN 60947-1, IEC/EN 60947-3
Catalogue Group:: Push-button
Catalogue Subgroup:: Push-button with control light TL
Function:: Push-button with control light
Rated current:: 16 A
Rated AC voltage:: 230 V
Number of poles:: 2
IP rating:: IP20
Max input cross-section:: 6 mm²
Rated Frequency:: 50/60 Hz
Standards:: IEC/EN 60947-1, IEC/EN 60947-3
Utilization category:: AC-11A

Product

Net depth: 73.4 mm
Net weight of the product: 80 g
Net width: 17.5 mm
Net height: 84.1 mm
Stock unit of measure: pcs
EAN code for a single product: 3838895793243

Basic Packaging

EAN code for a basic packaging: 3838895793250
Basic packaging weight: 1.01 kg
Basic packaging volume: 1.85 dm³
Basic packaging quantity: 12 pcs

Transport Packaging

Transport packaging weight: 5.2 kg
Transport packaging volume: 10.971 dm³
Transport packaging quantity: 60 pcs
Customs tariff: 85365080
EAN code for a transport packaging: 3838895807162
Pallet quantity: 3,960 pcs
