002470288

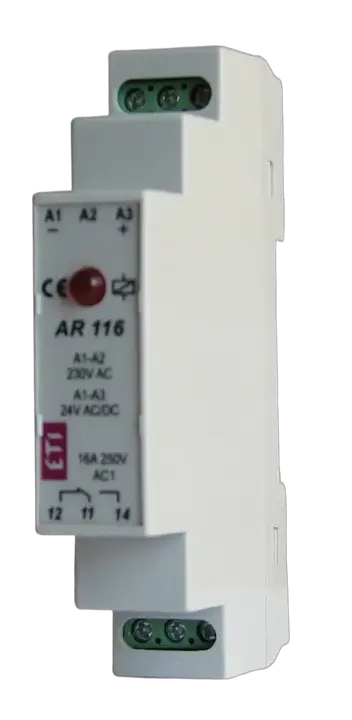

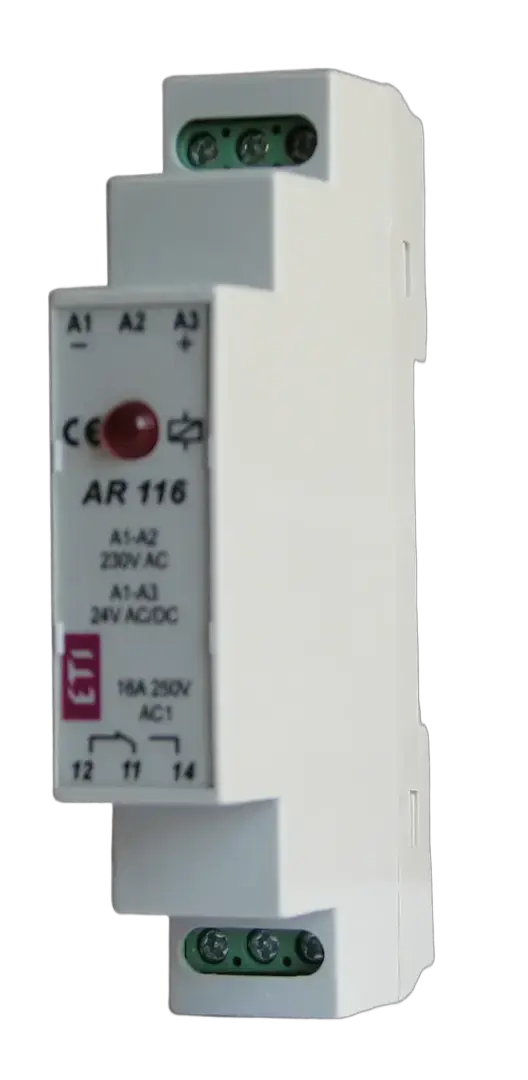

AR116 Power relay
- ETI Code:
- 002470288
- Function:
- Monitoring and Control relays
- Application:
- For switching electrical signals and circuits and expanding the number of control contacts.
- Type of control:
- Alarm and control
- Supply voltage:
- 230 V
- Voltage type:
- AC
- Max. contact current:
- 16 A
- Rated current:
- 16 A
- Max. load capacity at AC1:
- 4,000 VA
- Clamping cross-section:
- 0.5-2.5 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP20
- No. of NO contacts:
- 3
- No. of CO contacts:
- 3
- No. of NC contacts:
- 3
1 Documents
12 Logistics
Product
- Net weight of the product
- 0.07 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895615149
- Basic packaging weight
- 0.07 kg
- Basic packaging volume
- 0.12 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895615156
- Transport packaging weight
- 0.7 kg
- Transport packaging volume
- 1.4 dm³
- Pallet quantity
- 11,430 pcs
- Customs tariff
- 85364900
9 ETIM
- Degree of protection (IP)
- IP20
- Voltage type for actuating
- AC/DC
- Depth
- 65 mm
- Type of electric connection
- Clip connection
- Number of contacts as change-over contact
- 1
- Rated control supply voltage DC(Min)
- 24 V
- Rated control supply voltage AC 50 Hz(Min)
- 230 V
- Rated control supply voltage AC 50 Hz(Max)
- 230 V
- Rated control supply voltage DC(Max)
- 24 V
ETIM Classification – Version 9.0
