Monitoring and control relays ETIREL

Introduction

Monitoring and control relays are crucial elements in modern electrical systems, responsible for ensuring safety, reliability, and efficient operation. These relays go beyond simple on/off switches, actively monitoring various electrical parameters, such as voltage, current, frequency, and level. They trigger pre-defined actions based on these monitored conditions, acting as intelligent intermediaries to protect equipment, prevent faults, and automate processes.

VS116K white

Class name: Power relay
Function: Monitoring and Control relays
Supply Voltage: 230 V
Type of Control: Alarm and control
Number of contacts: 1
Voltage type: AC/DC V
Maximum load capacity at AC1: 4,000 VA
IP rating: IP20
Rated current: 16 A
Type of contacts: 1xCO
No. of CO contacts: 1
DC rated control supply voltage Uc: 24 V

VS316K/230 white

Class name: Power relay
Function: Monitoring and Control relays
Supply Voltage: 230 V
Type of Control: Alarm and control
Number of contacts: 3
Voltage type: AC V
Maximum load capacity at AC1: 4,000 VA
IP rating: IP20
Rated current: 16 A
Type of contacts: 1xCO
No. of CO contacts: 3

VS316/24 RED

Class name: Power relay
Function: Monitoring and Control relays
Supply Voltage: 24 V
Type of Control: Alarm and control
Number of contacts: 3
Voltage type: AC/DC V
Maximum load capacity at AC1: 4,000 VA
Rated current: 16 A
Type of contacts: 1xCO
No. of CO contacts: 1
DC rated control supply voltage Uc: 24 V

VS316K/24 white

Class name: Power relay
Function: Monitoring and Control relays
Supply Voltage: 24 V
Type of Control: Alarm and control
Number of contacts: 3
Voltage type: AC/DC V
Maximum load capacity at AC1: 4,000 VA
IP rating: IP20
Rated current: 16 A
Type of contacts: 1xCO
No. of CO contacts: 3
DC rated control supply voltage Uc: 24 V

VS116K

Class name: Power relay
Function: Monitoring and Control relays
Supply Voltage: 230 V
Type of Control: Alarm and control
Number of contacts: 1
Voltage type: AC, AC/DC V
Maximum load capacity at AC1: 4,000 VA
Rated current: 16 A
Type of contacts: 1xCO
No. of CO contacts: 1

VS316K/230 red

Class name: Power relay
Function: Monitoring and Control relays
Supply Voltage: 230 V
Type of Control: Alarm and control
Number of contacts: 3
Voltage type: AC, AC/DC V
Maximum load capacity at AC1: 4,000 VA
Rated current: 16 A
Type of contacts: 1xCO
No. of CO contacts: 1

VS308K

Class name: Power relay
Function: Monitoring and Control relays
Supply Voltage: 230 V
Type of Control: Alarm and control
Number of contacts: 3
Voltage type: AC V
Maximum load capacity at AC1: 2,000 VA
Rated current: 8 A
Type of contacts: 1xCO
No. of CO contacts: 3

HRN-100/2

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 400 V
Type of Control: sequence phase, phase and neutral failure, frequency
Number of contacts: 2
Voltage type: AC V
Maximum load capacity at AC1: 1,200 VA
Rated current: 5 A
No. of CO contacts: 1

PRI-51/0.1-10

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Number of contacts: 1
Voltage type: AC/DC V
Rated current: 8 A
No. of CO contacts: 1

PRI-51/1

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Number of contacts: 1
Voltage type: AC/DC V
Maximum load capacity at AC1: 2,500 VA
Rated current: 8 A
No. of CO contacts: 1
DC rated control supply voltage Uc: 24 V

PRI-51/2

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Number of contacts: 1
Voltage type: AC/DC V
Maximum load capacity at AC1: 2,500 VA
Rated current: 8 A
No. of CO contacts: 1
DC rated control supply voltage Uc: 24 V

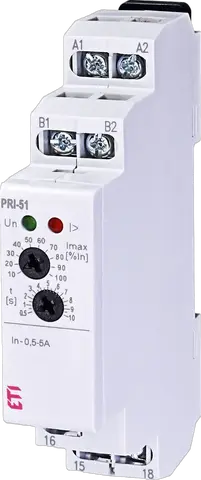

PRI-51/5

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Number of contacts: 1
Voltage type: AC/DC V
Maximum load capacity at AC1: 2,500 VA
Rated current: 8 A
No. of CO contacts: 1
DC rated control supply voltage Uc: 24 V

PRI-51/8

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Number of contacts: 1
Voltage type: AC/DC V
Maximum load capacity at AC1: 2,500 VA
Rated current: 8 A
No. of CO contacts: 1
DC rated control supply voltage Uc: 24 V

PRI-51/16

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Number of contacts: 1
Voltage type: AC/DC V
Maximum load capacity at AC1: 2,500 VA
Rated current: 8 A
No. of CO contacts: 1
DC rated control supply voltage Uc: 24 V

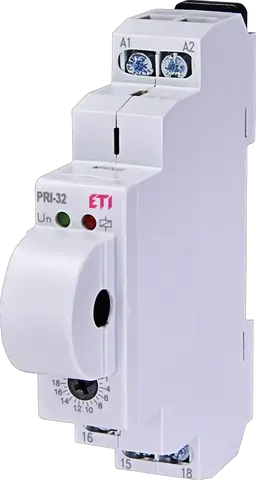

PRI-32

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Number of contacts: 1
Voltage type: AC/DC V
Maximum load capacity at AC1: 2,500 VA
Rated current: 8 A
No. of CO contacts: 1

HRN-32/2

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 48-276 V
Type of Control: Umax, Umin
Number of contacts: 2
Voltage type: AC/DC V
Maximum load capacity at AC1: 4,000 VA
Rated current: 16 A
Type of contacts: 1xCO
No. of CO contacts: 2
DC rated control supply voltage Uc: 48-276 V

HRN-31

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 48-276 V
Type of Control: Umax, Umin
Number of contacts: 1
Voltage type: AC/DC V
Maximum load capacity at AC1: 4,000 VA
Rated current: 16 A
Type of contacts: 1xCO
No. of CO contacts: 1
DC rated control supply voltage Uc: 48-276 V

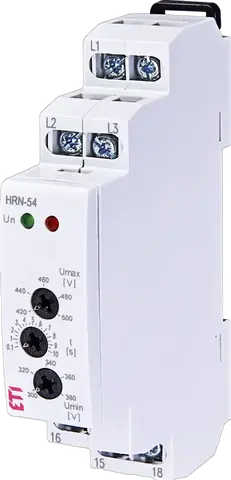

HRN-54

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 400 V
Type of Control: sequence phase, phase failure
Number of contacts: 1
Voltage type: AC V
Maximum load capacity at AC1: 2,500 VA
Rated current: 8 A
Type of contacts: 1xCO
No. of CO contacts: 1

HRN-54N

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 400 V
Type of Control: sequence phase, phase and neutral failure
Number of contacts: 1
Voltage type: AC V
Maximum load capacity at AC1: 2,500 VA
Rated current: 8 A
Type of contacts: 1xCO
No. of CO contacts: 1

HRH-ECH-MS2-CEC

Class name: Assemblied distribution box
Function: Monitoring and Control relays
Supply Voltage: 230 V
Type of Control: Monitoring levels
Number of contacts: 3
Voltage type: AC V
Maximum load capacity at AC1: 750 VA
Rated current: 25 A
No. of NO contacts: 1
