002471802

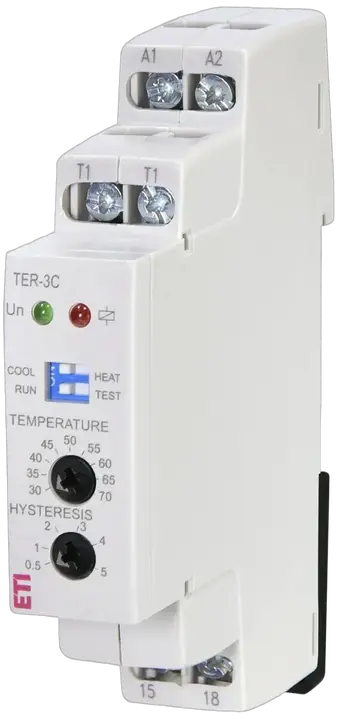

TER-3C Control relay
- ETI Code:
- 002471802
- Category:
- Thermostat relay TER-3 (A,B,C)
- Catalogue Group:
- Temperature monitoring relays
- Catalogue Subgroup:
- Thermostat relay
- Rated Frequency:
- 50 Hz
- IP rating:
- IP20
- Type description:
- Thermostat relay TER-3 (A,B,C)
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 24-240 V
- Temperature range:
- -30-70 °C
- Sensor Type:
- external, termistor NTC
- Number of contacts:
- 1
- Rated current:
- 10/16 A
- Voltage type:
- AC/DC
- Type of contacts:
- 1xNO
- Maximum load capacity at AC1:
- 4,000 VA
- No. of NO contacts:
- 1
7 Documents
21 Logistics
Product
- Net weight of the product
- 0.07 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.26 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895424246
- Basic packaging weight
- 0.084 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895474135
- Transport packaging weight
- 0.84 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 1.6 dm³
- Pallet quantity
- 6,250 pcs
- Customs tariff
- 85364900
14 ETIM
- Model
- Analogue
- Number of channels
- 1
- Degree of protection (IP)
- IP20
- Contact type
- Breaker contact
- Assembly depth
- 65 mm
- Nominal switching current at 250 V, potential free
- 16 A
- Sensor type
- Remote sensor
- Width in number of modular spacings
- 1
- Rated frequency(Min)
- 50 Hz
- Rated voltage(Min)
- 24 V
- Adjustment range comfort(Min)
- 30 °C
- Rated voltage(Max)
- 230 V
- Adjustment range comfort(Max)
- 70 °C
- Rated frequency(Max)
- 50 Hz
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
25 Tags
002471802Control relayTER-3CEVE/ETIRELControl equipmentRelaysRelaysThermostat relayThermostat relayInternationalAutomation, signaling and control devicesThermostats ETIRELType of contacts: 1xNONo. of NC contacts: 0Voltage type: AC/DCNumber of contacts: 1No. of CO contacts: 0Temperature range: -30 °C-70 °CFunction: Monitoring and Control relaysMaximum load capacity at AC1: 4000 VANo. of NO contacts: 1Supply Voltage: 24 V-240 VSensor Type: external, termistor NTCRated current: 10 A/16 AControl relay TOWAR Function: Monitoring and Control relays Supply Voltage: 24 V-240 V Temperature range: -30 °C-70 °C Number of contacts: 1 Rated current: 10 A/16 A Voltage type: AC/DC No. of NC contacts: 0 No. of CO contacts: 0 Type of contacts: 1xNO Maximum load capacity at AC1: 4000 VA No. of NO contacts: 1
Accessories 4 All Accessories
Similar Products 18 All Products
002471801
TER-3A
- Class name
- Control relay
- Function
- Monitoring and Control relays
- Supply Voltage
- 24-240 V
- Temperature range
- -30-10 °C
- Sensor Type
- external, termistor NTC
002471804
TER-7
- Class name
- Control relay
- Function
- Monitoring and Control relays
- Supply Voltage
- 24-240 V
- Temperature range
- Sensor Type
- PTC temperature of motor winding
002471805
TC-0
- Class name
- sensor
- Function
- Monitoring and Control relays
- Supply Voltage
- Temperature range
- 0-70 °C
- Sensor Type
- NTC 12K 5 %
002471806
TC-3
- Class name
- sensor
- Function
- Monitoring and Control relays
- Supply Voltage
- Temperature range
- 0-70 °C
- Sensor Type
- NTC 12K 5 %
002471807
TC-6
- Class name
- sensor
- Function
- Monitoring and Control relays
- Supply Voltage
- Temperature range
- 0-70 °C
- Sensor Type
- NTC 12K 5 %
002471808

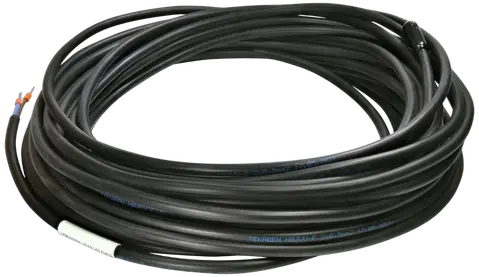

TC-12
- Class name
- sensor
- Function
- Monitoring and Control relays
- Supply Voltage
- Temperature range
- 0-70 °C
- Sensor Type
- NTC 12K 5 %
002471809
TZ-0
- Class name
- sensor
- Function
- Monitoring and Control relays
- Supply Voltage
- Temperature range
- -40-125 °C
- Sensor Type
- NTC 12K 5 %
002471810

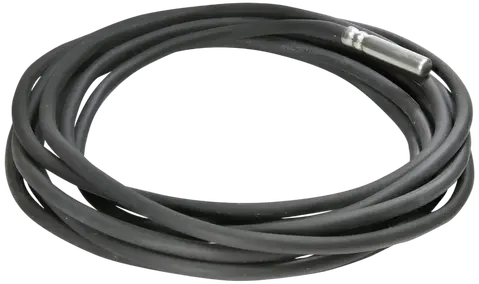

TZ-3
- Class name
- sensor
- Function
- Monitoring and Control relays
- Supply Voltage
- Temperature range
- -40-125 °C
- Sensor Type
- NTC 12K 5 %
002471811

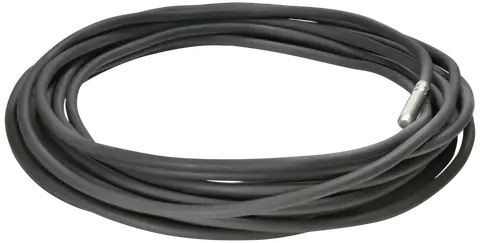

TZ-6
- Class name
- sensor
- Function
- Monitoring and Control relays
- Supply Voltage
- Temperature range
- -40-125 °C
- Sensor Type
- NTC 12K 5 %
002471812

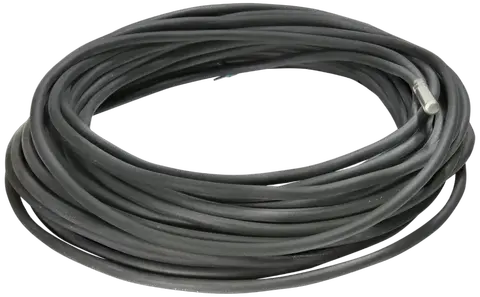

TZ-12
- Class name
- sensor
- Function
- Monitoring and Control relays
- Supply Voltage
- Temperature range
- -40-125 °C
- Sensor Type
- NTC 12K 5 %
002471813
TER-3B
- Class name
- Control relay
- Function
- Monitoring and Control relays
- Supply Voltage
- 24-240 V
- Temperature range
- 0-40 °C
- Sensor Type
- external, termistor NTC
002471824

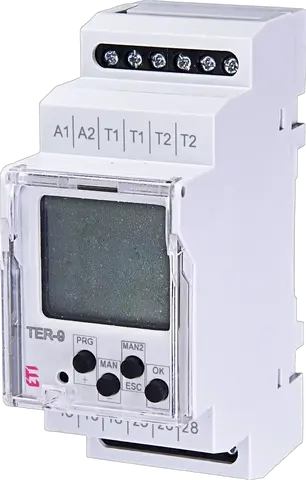

*TER-9 230V
