002471803
Obsolete

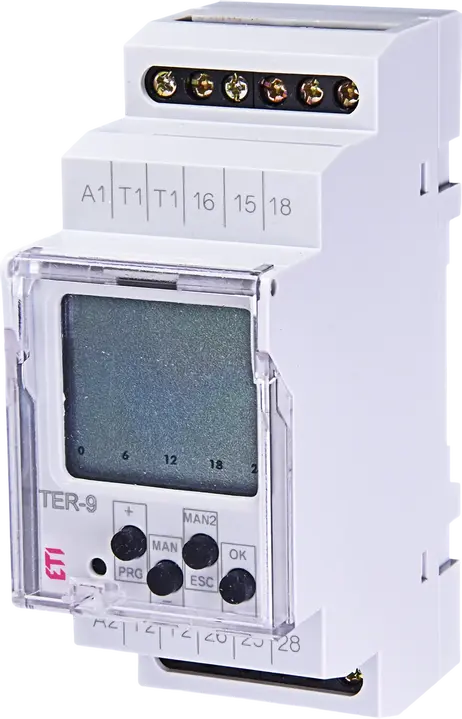

*TER-9 24V AC/DC Control relay
- ETI Code:
- 002471803
- Category:
- Multifunctional digital thermostat TER-9
- Catalogue Group:
- Temperature monitoring relays
- Catalogue Subgroup:
- Multifunction digital thermostat
- IP rating:
- IP20
- Type description:
- Multifunctional digital thermostat TER-9
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 24 V
- Temperature range:
- -40-110 °C
- Sensor Type:
- termistor NTC 12Ω at 25°C
- Number of contacts:
- 1
- Rated current:
- 8 A
- Voltage type:
- AC/DC
- Maximum load capacity at AC1:
- 2,500 VA
7 Documents
14 Logistics
Product
- Net weight of the product
- 0.13 kg
- Net width
- 35 mm
- Net height
- 94.9 mm
- Net depth
- 64.12 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895424215
- Transport packaging weight
- 0.13 kg
- Transport Packaging Dimensions Height
- 90 mm
- Transport Packaging Dimensions Width
- 35 mm
- Transport Packaging Dimensions Depth
- 64 mm
- Transport packaging volume
- 0.202 dm³
- Pallet quantity
- 4,960 pcs
- Customs tariff
- 85364900
9 ETIM
- Model
- Digital
- Degree of protection (IP)
- IP20
- Assembly depth
- 65 mm
- Nominal switching current at 250 V, potential free
- 8 A
- Width in number of modular spacings
- 2
- Rated voltage(Min)
- 24 V
- Adjustment range comfort(Min)
- -40 °C
- Rated voltage(Max)
- 24 V
- Adjustment range comfort(Max)
- 110 °C
ETIM Classification – Version 9.0
1 Diagrams
2 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
21 Tags
002471803Control relay*TER-9 24V AC/DCEVE/ETIRELControl equipmentRelaysRelaysMultifunction digital thermostatMultifunction digital thermostatInternationalAutomation, signaling and control devicesThermostats ETIRELVoltage type: AC/DCNumber of contacts: 1Temperature range: -40 °C-110 °CFunction: Monitoring and Control relaysMaximum load capacity at AC1: 2500 VASupply Voltage: 24 V-24 VSensor Type: termistor NTC 12Ω at 25°CRated current: 8 A/8 AControl relay TOWAR Function: Monitoring and Control relays Supply Voltage: 24 V-24 V Temperature range: -40 °C-110 °C Number of contacts: 1 Rated current: 8 A/8 A Voltage type: AC/DC Maximum load capacity at AC1: 2500 VA
