Miniature and auxilary contactors

Introduction

Miniature contactors are compact, electrically controlled switches used to control and protect electric motors and other electrical loads. They are specifically designed for applications requiring smaller size and lower power consumption compared to larger contactors.Auxiliary contactors, also known as auxiliary contact blocks, are typically used in conjunction with miniature contactors to provide additional control and signaling functions within a circuit.

Image of CE07.10-24V-50/60Hz

CE07.10-24V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 24 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.10-48V-50/60Hz

CE07.10-48V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 48 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.10-110V-50/60Hz

CE07.10-110V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 110 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.10-230V-50/60Hz

CE07.10-230V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 230 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.10-400V-50/60Hz

CE07.10-400V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 400 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.01-24V-50/60Hz

CE07.01-24V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 24 V
No. of NO contacts: 3
No. of aux NC contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.01-48V-50/60Hz

CE07.01-48V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 48 V
No. of NO contacts: 3
No. of aux NC contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.01-110V-50/60Hz

CE07.01-110V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 110 V
No. of NO contacts: 3
No. of aux NC contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.01-230V-50/60Hz

CE07.01-230V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 230 V
No. of NO contacts: 3
No. of aux NC contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.01-400V-50/60Hz

CE07.01-400V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 400 V
No. of NO contacts: 3
No. of aux NC contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CE17

Image of CE07.01-42V-50/60Hz

CE07.01-42V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 16 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 400 V
Rated control circuit voltage Uc (AC): 42 V
No. of NO contacts: 3
No. of aux NC contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature and auxiliary contactor CE, CAE, CEI

Image of CEC07.10-24V-50/60Hz

CEC07.10-24V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 24 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC

Image of CEC07.10-42V-50/60Hz

CEC07.10-42V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 42 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC

Image of CEC07.10-48V-50/60Hz

CEC07.10-48V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 48 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC

Image of CEC07.10-110V-50/60Hz

CEC07.10-110V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 110 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC

Image of CEC07.10-230V-50/60Hz

CEC07.10-230V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 230 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC

Image of CEC07.10-400V-50/60Hz

CEC07.10-400V-50/60Hz

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 400 V
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC

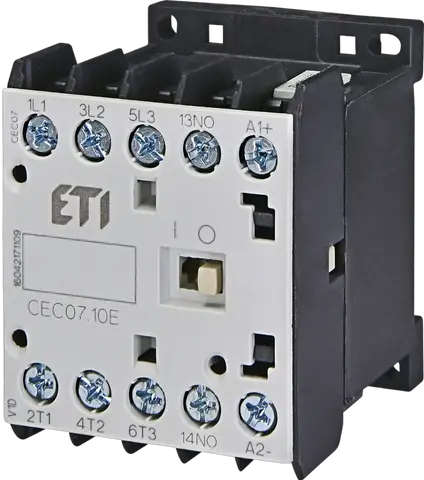

Image of CEC07.10 24V-DC

CEC07.10 24V-DC

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (DC): 24
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC

Image of CEC07.10 48V-DC

CEC07.10 48V-DC

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (DC): 48
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC

Image of CEC07.10 110V-DC

CEC07.10 110V-DC

Class name: Miniature motor contactor
Rated operation current Ie at AC1: 18 A
Rated operation current Ie at AC3, 400V: 7 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (DC): 110
No. of NO contacts: 3
No. of aux NO contacts: 1
Function: Miniature contactors
Catalogue Group: Miniature contactor CEC
