004646421

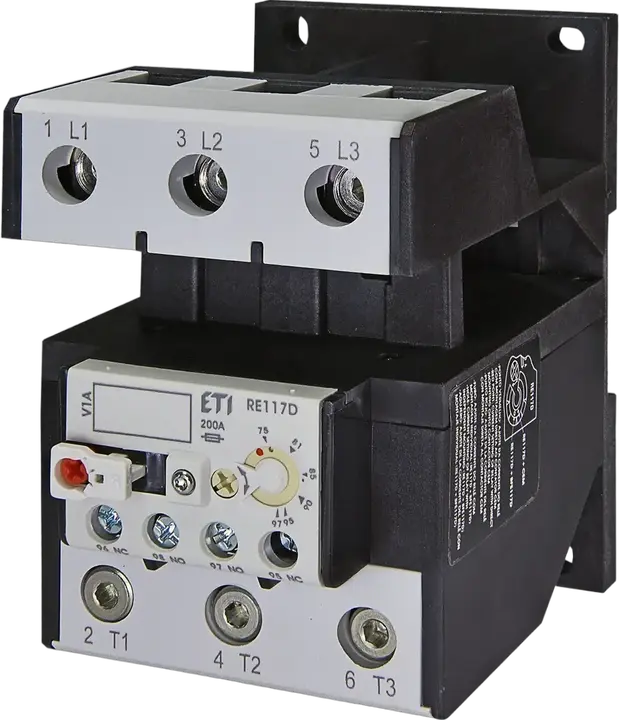

RE117.2D-97 Thermal overload relay
- ETI Code:
- 004646421
- To use with:
- CEM112 (E)
- Type of Installation:
- Contactor mounting
- Function accessories:
- Overload relay
- No. of aux NC contacts:
- 1
- Current setting range:
- 75/97 A
- No. of aux NO contacts:
- 1
- Catalogue Group:
- Accessories CEM/CEAM
- Function:
- Overload relay
14 Logistics
Product
- Net weight of the product
- 0.55 kg
- Net width
- 75.1 mm
- Net height
- 116.4 mm
- Net depth
- 104.7 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355110355
- Transport packaging weight
- 0.7 kg
- Transport Packaging Dimensions Height
- 110 mm
- Transport Packaging Dimensions Width
- 120 mm
- Transport Packaging Dimensions Depth
- 85 mm
- Transport packaging volume
- 1.122 dm³
- Pallet quantity
- 1,455 pcs
- Customs tariff
- 85364900
7 ETIM
- Release class
- CLASS 10
- Mounting method
- Separate positioning
- Type of electrical connection of main circuit
- Screw connection
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Adjustable current range(Min)
- 75 A
- Adjustable current range(Max)
- 97 A
ETIM Classification – Version 9.0
