004647424

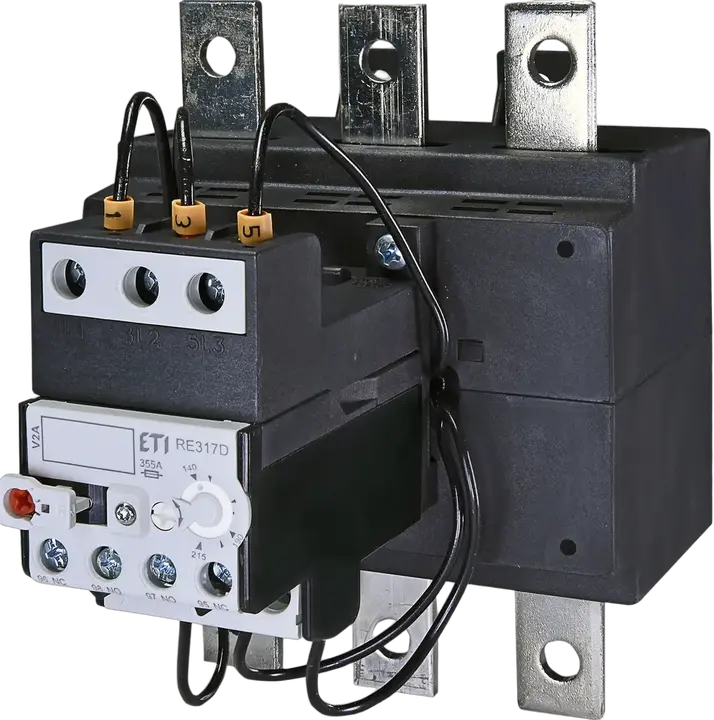

RE317D-215 Thermal overload relay
- ETI Code:
- 004647424
- To use with:
- CEM150(E)...CEM250(E)
- Type of Installation:
- Base plate mounting
- Function accessories:
- Overload relay
- No. of aux NC contacts:
- 1
- Current setting range:
- 140/215 A
- No. of aux NO contacts:
- 1
- Catalogue Group:
- Accessories CEM/CEAM
- Function:
- Overload relay
14 Logistics
Product
- Net weight of the product
- 0.9 kg
- Net width
- 120 mm
- Net height
- 155 mm
- Net depth
- 168.75 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355110386
- Transport packaging weight
- 2 kg
- Transport Packaging Dimensions Height
- 160 mm
- Transport Packaging Dimensions Width
- 180 mm
- Transport Packaging Dimensions Depth
- 125 mm
- Transport packaging volume
- 3.6 dm³
- Pallet quantity
- 563 pcs
- Customs tariff
- 85364900
7 ETIM
- Release class
- CLASS 10
- Mounting method
- Direct attachment/single positioning
- Type of electrical connection of main circuit
- Screw connection
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Adjustable current range(Min)
- 140 A
- Adjustable current range(Max)
- 215 A
ETIM Classification – Version 9.0
