001101029

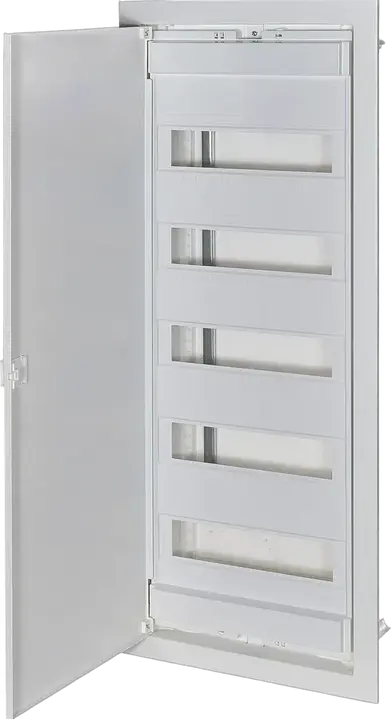

ECG70 Distribution box
- ETI Code:
- 001101029
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rows (legacy):
- 5
- Height:
- 842 mm
- Width:
- 346 mm
- Depth:
- 87 mm
- Catalogue Group:
- ECG flush mounted compact distribution boxes IP40
- Type of door:
- Metal door, White
- Type of Installation:
- Flush mounted
- Rated current:
- 63 A
- Protection Class:
- II
- IP rating:
- IP40
- No. of modules (total/per row):
- 70/14
- Frame size (Nr. of rows):
- 5
- Door (material, color):
- metal, white
- Enclosure base (material, color):
- plastic, white
- Number of PE/N terminals (connections):
- 30
- Glow wire test (°C):
- 650 °C
14 Logistics
Product
- Net weight of the product
- 5.1 kg
- Net width
- 425 mm
- Net height
- 841.7 mm
- Net depth
- 94.31 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895821649
- Transport packaging weight
- 5 kg
- Transport Packaging Dimensions Height
- 850 mm
- Transport Packaging Dimensions Width
- 354 mm
- Transport Packaging Dimensions Depth
- 133 mm
- Transport packaging volume
- 40.02 dm³
- Pallet quantity
- 34 pcs
- Customs tariff
- 85381000
19 ETIM
- Built-in depth
- 87 mm
- Width
- 346 mm
- DIN-rail
- Yes
- Type of covering
- Door
- Neutral terminal block
- Yes
- Degree of protection (IP)
- IP40
- Mounting method
- Flush-mounted
- Earthing terminal block
- Yes
- Built-in height
- 799 mm
- Number of rows
- 5
- Housing material
- Plastic
- Depth
- 87 mm
- Built-in width
- 306 mm
- Colour
- White
- Type of door
- Single
- Cover model
- Closed
- Height
- 842 mm
- Width in number of modular spacings
- 12
- RAL-number
- 9,003
ETIM Classification – Version 9.0
