001101202

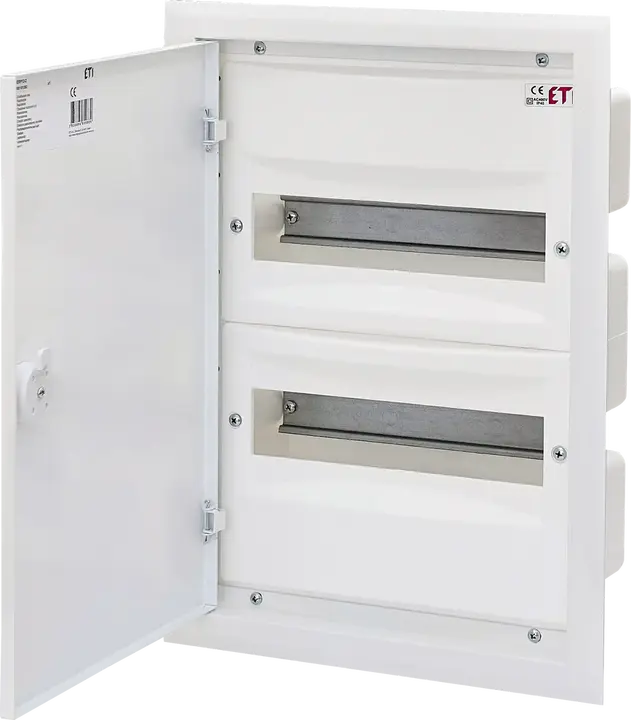

ERP12-2 Distribution box
- ETI Code:
- 001101202
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rows (legacy):
- 2
- Height:
- 448 mm
- Width:
- 326 mm
- Color:
- White
- Catalogue Group:
- DIDO ERP
- Type of door:
- White door
- Type of Installation:
- Flush mounted
- Rated current:
- 63 A
- Protection Class:
- II
- IP rating:
- IP40
- No. of modules (total/per row):
- 24/12
- Frame size (Nr. of rows):
- 2
- Door (material, color):
- metal, white
- Enclosure base (material, color):
- plastic, white
- Number of PE/N terminals (connections):
- 24/22
- Glow wire test (°C):
- 650 °C
5 Documents
8 Logistics
Product
- Net weight of the product
- 3.1 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895609889
- Transport packaging weight
- 3.3 kg
- Transport packaging volume
- 14 dm³
- Pallet quantity
- 50 pcs
- Customs tariff
- 85369001
13 ETIM
- Built-in depth
- 125 mm
- Width
- 326 mm
- DIN-rail
- Yes
- Degree of protection (IP)
- IP40
- Mounting method
- Flush-mounted
- Number of rows
- 2
- Housing material
- Plastic
- Depth
- 120 mm
- Colour
- White
- Height
- 448 mm
- EMC-version
- Yes
- Width in number of modular spacings
- 12
- RAL-number
- 9,016
ETIM Classification – Version 9.0
