001100150

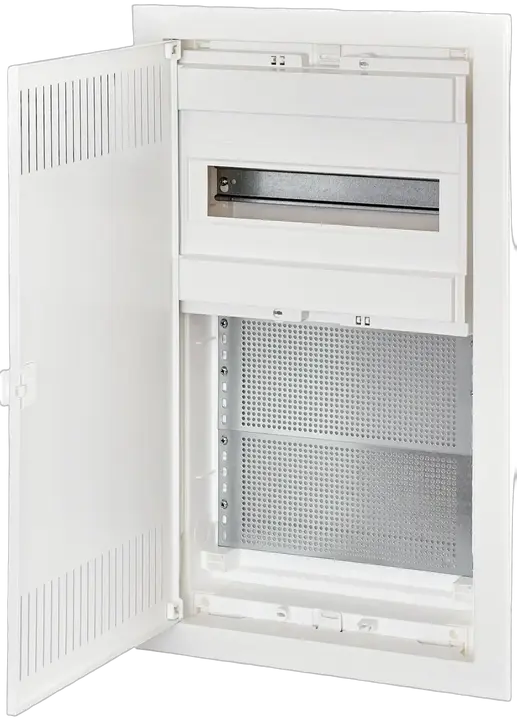

ECG42COMBO2/1-I_FR Distribution box
- ETI Code:
- 001100150
- Rows (legacy):
- 3
- Catalogue Group:
- ECG flush mounted Multimedia distribution boxes IP30
- Type of door:
- Perforated metal door, White
- Type of Installation:
- Flush mounted
- Protection Class:
- II
- IP rating:
- IP30
- No. of modules (total/per row):
- 42/14
- Frame size (Nr. of rows):
- 3
- Door (material, color):
- metal-perforated, white
- Enclosure base (material, color):
- plastic, white
14 Logistics
Product
- Net weight of the product
- 3.4 kg
- Net width
- 425 mm
- Net height
- 591.7 mm
- Net depth
- 98.02 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895851974
- Transport packaging weight
- 3.4 kg
- Transport Packaging Dimensions Height
- 600 mm
- Transport Packaging Dimensions Width
- 354 mm
- Transport Packaging Dimensions Depth
- 133 mm
- Transport packaging volume
- 28.249 dm³
- Pallet quantity
- 56 pcs
- Customs tariff
- 85381000
13 ETIM
- Built-in depth
- 88 mm
- With mounting plate
- Yes
- Width
- 346 mm
- DIN-rail
- Yes
- Model
- Distributor enclosure
- Degree of protection (IP)
- IP30
- Mounting method
- Flush-mounted
- Number of rows
- 1
- Depth
- 87 mm
- Colour
- White
- Material
- Steel plate/plastic
- Height
- 592 mm
- Width in number of modular spacings
- 12
ETIM Classification – Version 9.0
