001101064

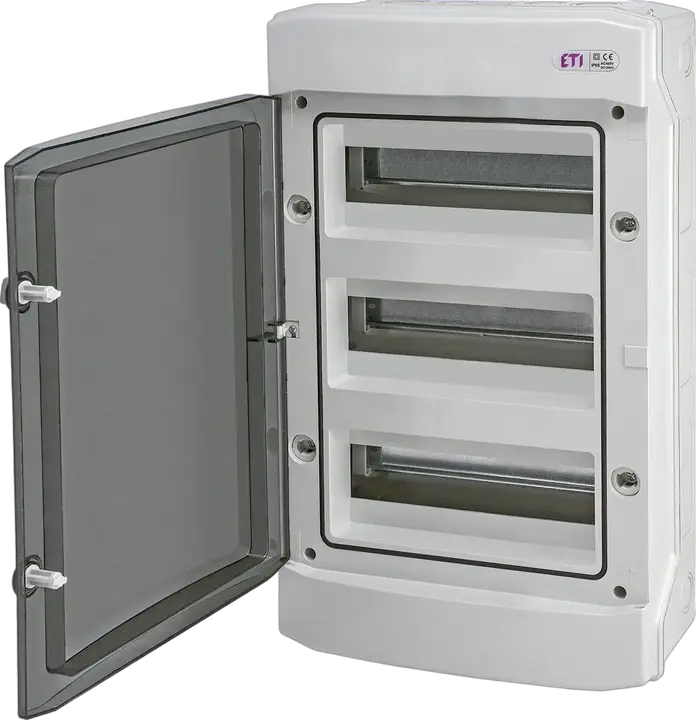

ECH-36PT Distribution box
- ETI Code:
- 001101064
- Rows (legacy):
- 3
- Catalogue Group:
- ECH wall mounted plastic distribution boxes IP65
- Type of door:
- Transparent door
- Type of Installation:
- Surface mounted
- IP rating:
- IP65
- Frame size (Nr. of rows):
- 3
- No. of modules (total/per row):
- 36/12
- Door (material, color):
- transparent, plastic
- Enclosure base (material, color):
- plastic, grey
- Number of PE/N terminals (connections):
- 15
- Glow wire test (°C):
- 650 °C
- Rated DC voltage:
- 1500 V
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
21 Logistics
Product
- Net weight of the product
- 2.365 kg
- Net width
- 318.6 mm
- Net height
- 534.5 mm
- Net depth
- 149.87 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895551799
- Basic packaging weight
- 2.365 kg
- Basic Packaging Dimensions Height
- 318 mm
- Basic Packaging Dimensions Width
- 507 mm
- Basic Packaging Dimensions Depth
- 142 mm
- Basic packaging volume
- 22.894 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895551805
- Transport packaging weight
- 12.643 kg
- Transport Packaging Dimensions Height
- 763 mm
- Transport Packaging Dimensions Width
- 548 mm
- Transport Packaging Dimensions Depth
- 333 mm
- Transport packaging volume
- 139.235 dm³
- Pallet quantity
- 60 pcs
- Customs tariff
- 85381000
19 ETIM
- Width
- 319 mm
- DIN-rail
- Yes
- Type of covering
- Door
- Neutral terminal block
- Yes
- Transparent cover/door
- Yes
- Degree of protection (IP)
- IP65
- Mounting method
- Surface mounted
- Signal passing door
- Yes
- Earthing terminal block
- Yes
- UV resistant
- Yes
- Number of rows
- 3
- Housing material
- Plastic
- Depth
- 144 mm
- Colour
- Grey
- Type of door
- Single
- Cover model
- Closed
- Height
- 508 mm
- Width in number of modular spacings
- 12
- RAL-number
- 7,035
ETIM Classification – Version 9.0
