001101414

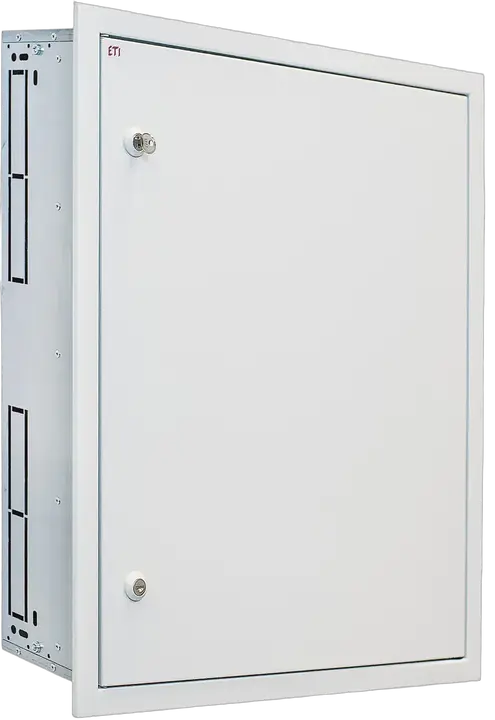

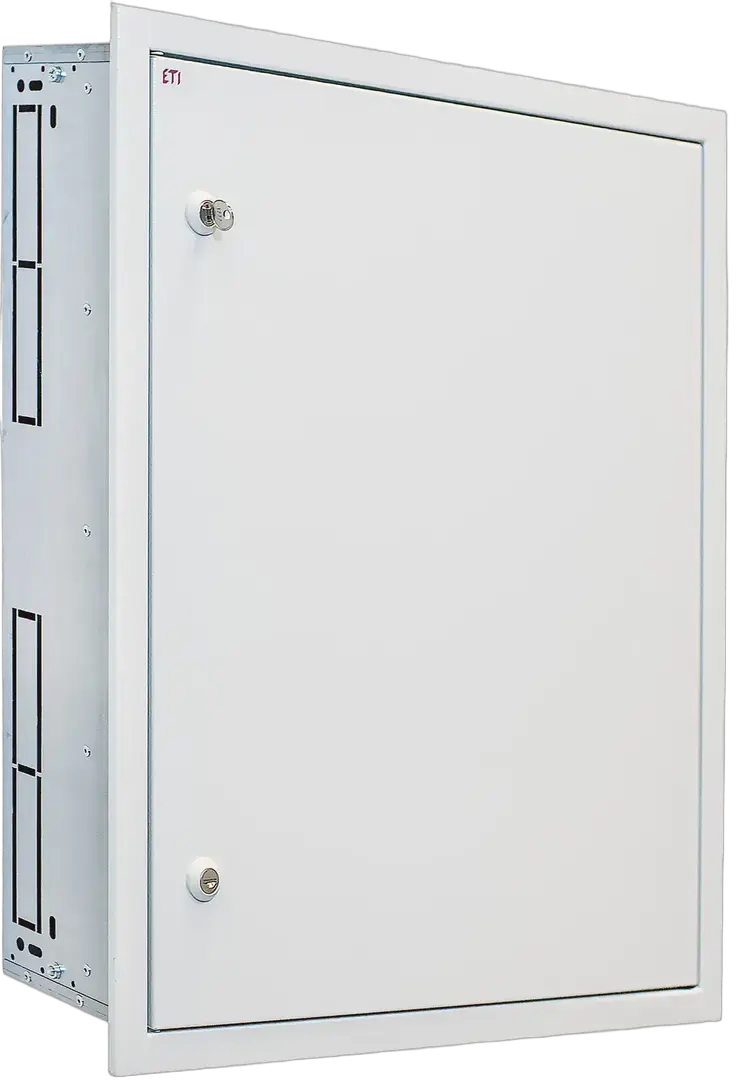

4XP160 2-7 Flush mounted enclosure
- ETI Code:
- 001101414
- Function:
- Enclosure
- To use with:
- SOLID GSX system
- Rated AC voltage:
- 690 V
- Rows (legacy):
- 7
- Network system:
- 1 phase and 3 phase system
- Catalogue Group:
- SOLID GSX Enclosures
- Isolation class:
- I
- Ambient temperature:
- -5/40 °C
- Standards:
- IEC/EN 62208, IEC/EN 60529, IEC/EN 62262, IEC/EN 61439-1
- Type of Installation:
- Flush mounted
- Type of door:
- Full, Metal door
- Frame Size:
- 160
- Surface finish:
- Powder coated steel
- Directives:
- RoHS
- Frame size (Nr. of rows):
- 7
- Key locks:
- Two locks with a key 1333 code
- Working Temperature:
- -5-40 °C
- Type description:
- Flush mounted enclosure
- Protection Class:
- I
- IP rating:
- IP42
- Mechanical resistance:
- IK10
- Height:
- 1,160 mm
- Width:
- 610 mm
- Depth:
- 160 mm
- Application:
- Indoor use
- Color:
- RAL 7035
- Rated current:
- 250 A
11 Logistics
Product
- Net weight of the product
- 20.299 kg
- Net width
- 610 mm
- Net height
- 1,160 mm
- Net depth
- 160 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 5904723019682
- Transport packaging weight
- 21.69 kg
- Transport packaging volume
- 132.19 dm³
- Pallet quantity
- 8 pcs
- Customs tariff
- 85381000
18 ETIM
- Built-in depth
- 160 mm
- Nominal current (In)
- 250 A
- Surface protection
- Powder coating
- Width
- 610 mm
- Degree of protection (IP)
- IP42
- Mounting method
- Flush-mounted
- Impact strength
- IK10
- Number of modules
- 168
- Protection class
- I
- With lock
- Yes
- Number of rows
- 7
- Housing material
- Steel
- Depth
- 160 mm
- Colour
- Other
- Type of door
- Single
- Height
- 1,160 mm
- Width in number of modular spacings
- 24
- RAL-number
- 7,035
ETIM Classification – Version 9.0
