001344015

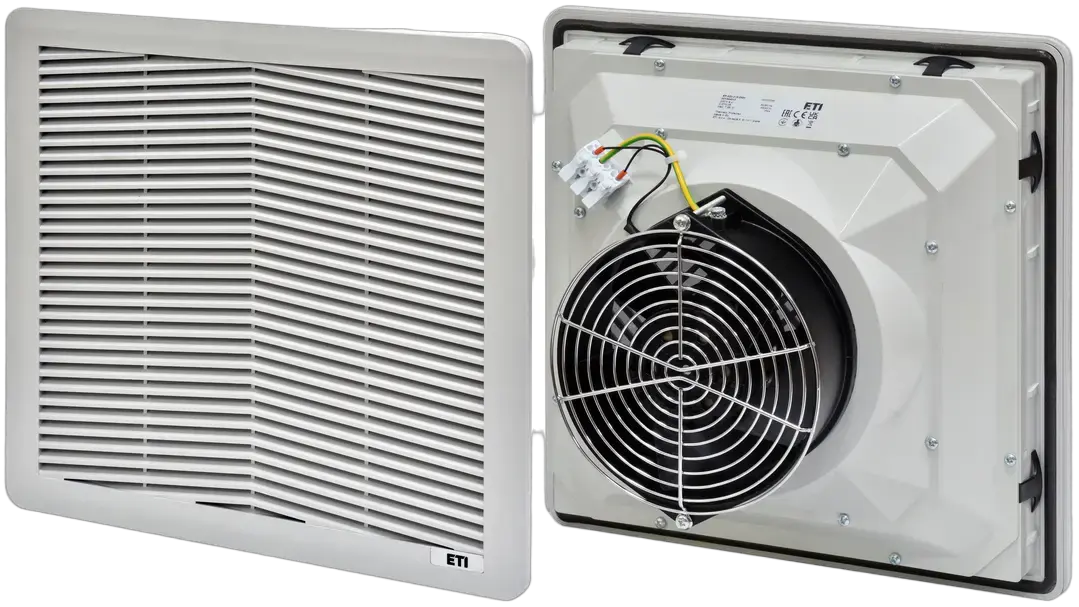

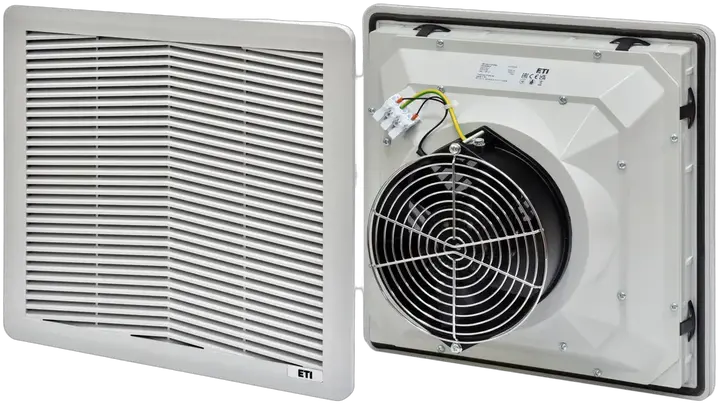

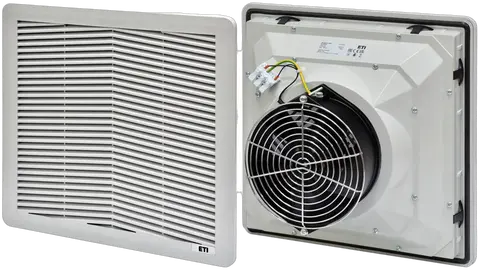

EF-325-315-230V Filterfan
- ETI Code:
- 001344015
- Working Temperature:
- -30-55 °C
- Approvals:
- CE
- Mounting wall thickness:
- 1.3-3.7 mm
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Rated current:
- 0.27 A
- Color:
- RAL 7035
- Rated power:
- 0.045 kW
- Airflow with exhaust filter:
- 264 m³/h
- Max static pressure:
- 105 Pa
- Filter Class:
- G3
- Width:
- 325 mm
- Storage Temperature:
- -40-70 °C
- IP rating:
- IP54
- Max Airflow:
- 315 m³/h
- Fan noise:
- 58 dB
- Height:
- 325 mm
- Connection type:
- Terminal block
- Depth:
- 163.5 mm
- Mounting cut-out:
- 291 mm
14 Logistics
Product
- Net weight of the product
- 2.8 kg
- Net width
- 325 mm
- Net height
- 325.1 mm
- Net depth
- 163.45 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 4 pcs
- EAN code for a transport packaging
- 3838400103697
- Transport packaging weight
- 11.75 kg
- Transport Packaging Dimensions Height
- 360 mm
- Transport Packaging Dimensions Width
- 360 mm
- Transport Packaging Dimensions Depth
- 720 mm
- Transport packaging volume
- 93.312 dm³
- Pallet quantity
- 40 pcs
- Customs tariff
- 84213925
