001344016

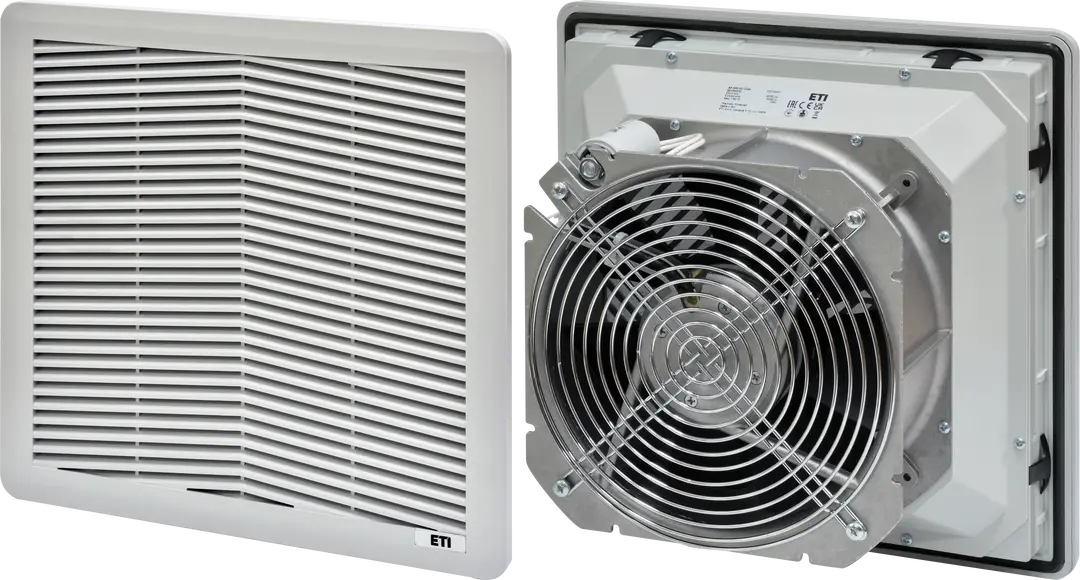

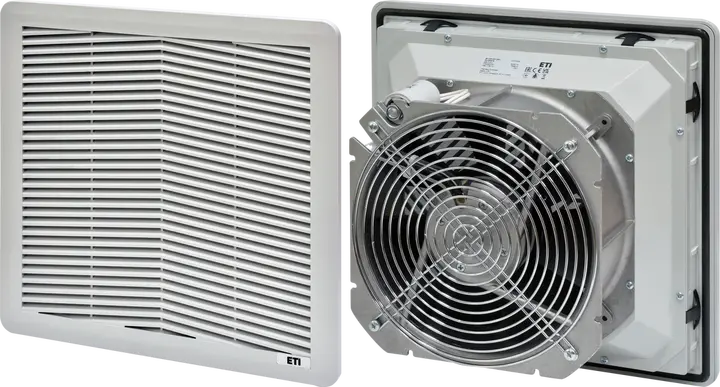

EF-325-457-230V Filterfan
- ETI Code:
- 001344016
- Working Temperature:
- -25-60 °C
- Approvals:
- CE
- Mounting wall thickness:
- 1.3-3.7 mm
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Rated current:
- 0.343 A
- Color:
- RAL 7035
- Rated power:
- 0.079 kW
- Airflow with exhaust filter:
- 325 m³/h
- Max static pressure:
- 136 Pa
- Filter Class:
- G3
- Width:
- 325 mm
- IP rating:
- IP54
- Max Airflow:
- 457 m³/h
- Fan noise:
- 60 dB
- Height:
- 325 mm
- Connection type:
- Terminal block
- Depth:
- 160.5 mm
- Mounting cut-out:
- 291 mm
21 Logistics
Product
- Net weight of the product
- 3.65 kg
- Net width
- 325 mm
- Net height
- 325.1 mm
- Net depth
- 160.17 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400103727
- Basic packaging weight
- 3.65 kg
- Basic Packaging Dimensions Height
- 335 mm
- Basic Packaging Dimensions Width
- 335 mm
- Basic Packaging Dimensions Depth
- 170 mm
- Basic packaging volume
- 19.078 dm³
Transport Packaging
- Transport packaging quantity
- 4 pcs
- EAN code for a transport packaging
- 3838400103734
- Transport packaging weight
- 15.35 kg
- Transport Packaging Dimensions Height
- 180 mm
- Transport Packaging Dimensions Width
- 340 mm
- Transport Packaging Dimensions Depth
- 340 mm
- Transport packaging volume
- 20.808 dm³
- Pallet quantity
- 40 pcs
- Customs tariff
- 84213925
