Mounting insulators

Introduction

Mounting insulators are essential components in electrical systems, providing electrical insulation and mechanical support for conductors.

Filter by

60 products

Image of INS 1238

INS 1238

Class name: Busbar insulator
Rated DC voltage: 250 V
Rated AC voltage: 250 V
Impulse isolation strenght: 8 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 12 mm
Width: 8 mm

Image of INS 15414

INS 15414

Class name: Busbar insulator
Rated DC voltage: 250 V
Rated AC voltage: 250 V
Impulse isolation strenght: 8 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 15 mm
Width: 14 mm

Image of INS 15514

INS 15514

Class name: Busbar insulator
Rated DC voltage: 250 V
Rated AC voltage: 250 V
Impulse isolation strenght: 8 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 15 mm
Width: 14 mm

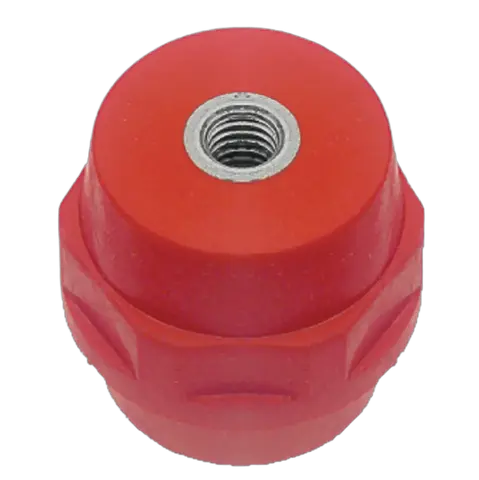

Image of INS 16414

INS 16414

Class name: Busbar insulator
Rated DC voltage: 250 V
Rated AC voltage: 250 V
Impulse isolation strenght: 8 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 16 mm
Width: 14 mm

Image of INS 20417

INS 20417

Class name: Busbar insulator
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Impulse isolation strenght: 15 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 20 mm
Width: 17 mm

Image of INS 20517

INS 20517

Class name: Busbar insulator
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Impulse isolation strenght: 15 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 20 mm
Width: 17 mm

Image of INS 20617

INS 20617

Class name: Busbar insulator
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Impulse isolation strenght: 15 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 20 mm
Width: 17 mm

Image of INS 25419

INS 25419

Class name: Busbar insulator
Rated DC voltage: 600 V
Rated AC voltage: 600 V
Impulse isolation strenght: 25 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 25 mm
Width: 19 mm

Image of INS 25519

INS 25519

Class name: Busbar insulator
Rated DC voltage: 600 V
Rated AC voltage: 600 V
Impulse isolation strenght: 25 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 25 mm
Width: 19 mm

Image of INS 25619

INS 25619

Class name: Busbar insulator
Rated DC voltage: 600 V
Rated AC voltage: 600 V
Impulse isolation strenght: 25 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 25 mm
Width: 19 mm

Image of INS 25819

INS 25819

Class name: Busbar insulator
Rated DC voltage: 600 V
Rated AC voltage: 600 V
Impulse isolation strenght: 25 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 25 mm
Width: 19 mm

Image of INS 30630

INS 30630

Class name: Busbar insulator
Rated DC voltage: 750 V
Rated AC voltage: 750 V
Impulse isolation strenght: 30 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 30 mm
Width: 30 mm

Image of INS 30830

INS 30830

Class name: Busbar insulator
Rated DC voltage: 750 V
Rated AC voltage: 750 V
Impulse isolation strenght: 30 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 30 mm
Width: 30 mm

Image of INS 35632

INS 35632

Class name: Busbar insulator
Rated DC voltage: 750 V
Rated AC voltage: 750 V
Impulse isolation strenght: 40 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 35 mm
Width: 32 mm

Image of INS 35832

INS 35832

Class name: Busbar insulator
Rated DC voltage: 750 V
Rated AC voltage: 750 V
Impulse isolation strenght: 40 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 35 mm
Width: 32 mm

Image of INS 351032

INS 351032

Class name: Busbar insulator
Rated DC voltage: 750 V
Rated AC voltage: 750 V
Impulse isolation strenght: 40 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 35 mm
Width: 32 mm

Image of INS 36641

INS 36641

Class name: Busbar insulator
Rated DC voltage: 1,000 V
Rated AC voltage: 1,000 V
Impulse isolation strenght: 40 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 36 mm
Width: 41 mm

Image of INS 36841

INS 36841

Class name: Busbar insulator
Rated DC voltage: 1,000 V
Rated AC voltage: 1,000 V
Impulse isolation strenght: 40 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 36 mm
Width: 41 mm

Image of INS 361041

INS 361041

Class name: Busbar insulator
Rated DC voltage: 1,000 V
Rated AC voltage: 1,000 V
Impulse isolation strenght: 40 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 36 mm
Width: 41 mm

Image of INS 40632

INS 40632

Class name: Busbar insulator
Rated DC voltage: 1,000 V
Rated AC voltage: 1,000 V
Impulse isolation strenght: 40 kV
Working Temperature: -20-120 °C
Material: Polyester BMC
Flammable class: V0
Height: 40 mm
Width: 32 mm
