002279001

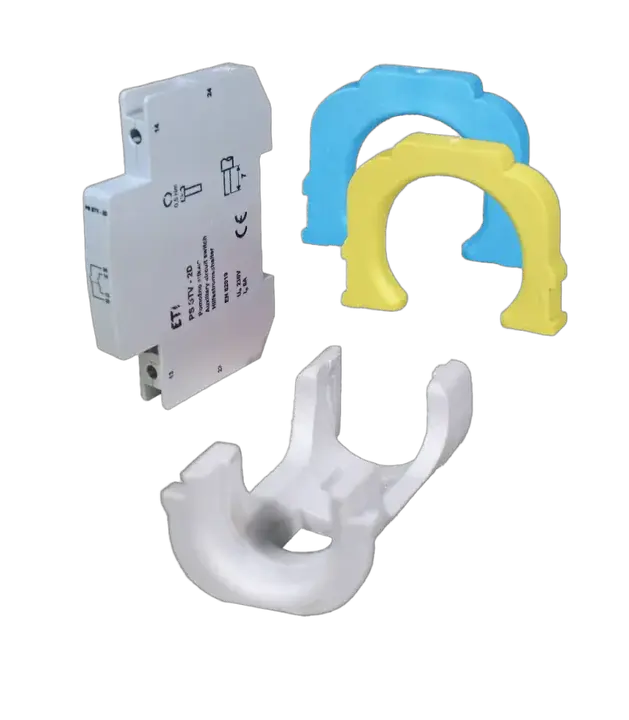

STVD02 PS - MD Auxilliary switch
- ETI Code:
- 002279001
- Type of Installation:
- Fuse-switch disconnector mounting
- To use with:
- Switch-disconnector-fuse STV D02
- Type accessories:
- Auxiliary switch PS
- Product group accessories:
- Switch-disconnector-fuse STV D02
7 Documents
21 Logistics
Product
- Net weight of the product
- 0.05 kg
- Net width
- 11.7 mm
- Net height
- 87.5 mm
- Net depth
- 70.88 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895177449
- Basic packaging weight
- 0.058 kg
- Basic Packaging Dimensions Height
- 0.024 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.075 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895177456
- Transport packaging weight
- 0.766 kg
- Transport Packaging Dimensions Height
- 0.081 m
- Transport Packaging Dimensions Width
- 0.123 m
- Transport Packaging Dimensions Depth
- 0.216 m
- Transport packaging volume
- 0.002 m³
- Pallet quantity
- 624 pcs
- Customs tariff
- 85365011
5 ETIM
- Number of contacts as normally closed contact
- 1
- Mounting method
- Side mounting
- Rated operation current Ie at AC-15, 230 V
- 6 A
- Number of contacts as normally open contact
- 1
- Type of electric connection
- Screw connection
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
16 Tags
002279001Auxilliary switchSTVD02 PS - MDD0Switch-disconnector-fuseSTVD02STVD02AccessoriesAccessoriesInternationalFuse links D, D0, CAccessories for D0Type accessories: Auxiliary switch PSProduct group accessories: Switch-disconnector-fuse STV D02To use with: Switch-disconnector-fuse STV D02Auxilliary switch TOWAR To use with: Switch-disconnector-fuse STV D02 Product group accessories: Switch-disconnector-fuse STV D02 Type accessories: Auxiliary switch PS
