002641019
Obsolete

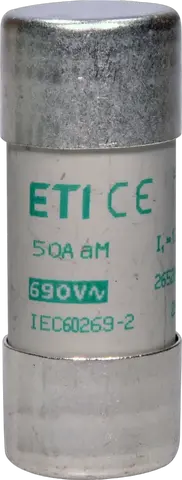

*CH22x58 aM 50A/690V Fuse link
- ETI Code:
- 002641019
- Product group:
- C low Voltage cylindrical fuses
- Catalogue Group:
- C low Voltage cylindrical fuses
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 22x58
- Rated current:
- 50 A
- Rated AC voltage:
- 690 V
- Time-Current Characteristic:
- aM
- Breaking capacity AC:
- 80 kA
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Power dissipation:
- 3.3 W
- Standards:
- IEC 60269-1, IEC 60269-2
16 Logistics
Product
- EAN code for a single product
- 3838895581383
- Net weight of the product
- 52 g
- Net width
- 22.2 mm
- Net height
- 58 mm
- Net depth
- 22.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895169925
- Basic packaging weight
- 0.52 kg
- Basic packaging volume
- 0.33 dm³
Transport Packaging
- Transport packaging quantity
- 500 pcs
- EAN code for a transport packaging
- 3838895169932
- Transport packaging weight
- 26.3 kg
- Transport packaging volume
- 16.5 dm³
- Pallet quantity
- 26,000 pcs
- Customs tariff
- 85361050
2 ETIM
- Size
- 22x58 mm
- Breaking capacity
- 80 kA
ETIM Classification – Version 9.0
