002651025

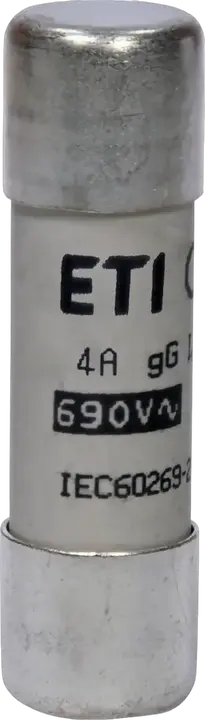

CH14x51 gG 4A/690V Fuse link
- ETI Code:
- 002651025
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 14x51
- Rated current:
- 4 A
- Rated AC voltage:
- 690 V
- Time-Current Characteristic:
- gG
- Breaking capacity AC:
- 120 kA
- Application:
- For cable protection
- Power dissipation:
- 1.1 W
- Standards:
- IEC 60269-1, IEC 60269-2
22 Logistics
Product
- EAN code for a single product
- 3838400115959
- Net weight of the product
- 0.02 kg
- Net width
- 14.3 mm
- Net height
- 51 mm
- Net depth
- 14.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838400094780
- Basic packaging weight
- 0.21 kg
- Basic Packaging Dimensions Height
- 17 mm
- Basic Packaging Dimensions Width
- 109 mm
- Basic Packaging Dimensions Depth
- 75 mm
- Basic packaging volume
- 0.139 dm³
Transport Packaging
- Transport packaging quantity
- 700 pcs
- EAN code for a transport packaging
- 3838400094797
- Transport packaging weight
- 15.146 kg
- Transport Packaging Dimensions Height
- 140 mm
- Transport Packaging Dimensions Width
- 290 mm
- Transport Packaging Dimensions Depth
- 390 mm
- Transport packaging volume
- 15.834 dm³
- Pallet quantity
- 27,300 pcs
- Customs tariff
- 85361010
8 ETIM
- Voltage type
- AC
- Size
- 14x51 mm
- Breaking capacity
- 120 kA
- Rated voltage
- 690 V
- Rated current
- 4 A
- Utilization category
- Other
- Rated operating frequency(Min)
- 50 Hz
- Rated operating frequency(Max)
- 50 Hz
ETIM Classification – Version 9.0
