002651051

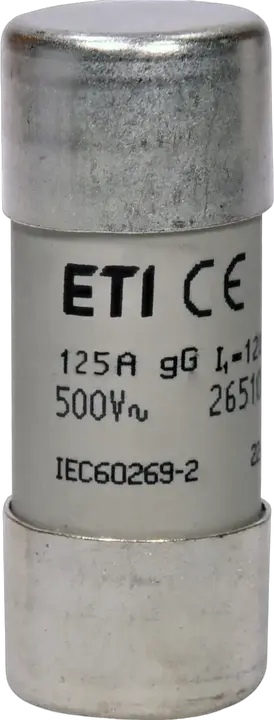

CH22x58 gG 125A/500V Fuse link
- ETI Code:
- 002651051
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 22x58
- Rated current:
- 125 A
- Rated AC voltage:
- 500 V
- Time-Current Characteristic:
- gG
- Breaking capacity AC:
- 120 kA
- Application:
- For cable protection
- Power dissipation:
- 11.3 W
- Standards:
- IEC 60269-1, IEC 60269-2
22 Logistics
Product
- EAN code for a single product
- 3838400116215
- Net weight of the product
- 0.054 kg
- Net width
- 22.2 mm
- Net height
- 58 mm
- Net depth
- 22.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838400095329
- Basic packaging weight
- 0.559 kg
- Basic Packaging Dimensions Height
- 23 mm
- Basic Packaging Dimensions Width
- 119 mm
- Basic Packaging Dimensions Depth
- 117 mm
- Basic packaging volume
- 0.32 dm³
Transport Packaging
- Transport packaging quantity
- 250 pcs
- EAN code for a transport packaging
- 3838400095336
- Transport packaging weight
- 14.415 kg
- Transport Packaging Dimensions Height
- 140 mm
- Transport Packaging Dimensions Width
- 290 mm
- Transport Packaging Dimensions Depth
- 390 mm
- Transport packaging volume
- 15.834 dm³
- Pallet quantity
- 10,250 pcs
- Customs tariff
- 85361090
8 ETIM
- Voltage type
- AC
- Size
- 22x58 mm
- Breaking capacity
- 120 kA
- Rated voltage
- 500 V
- Rated current
- 125 A
- Utilization category
- Other
- Rated operating frequency(Min)
- 50 Hz
- Rated operating frequency(Max)
- 50 Hz
ETIM Classification – Version 9.0
