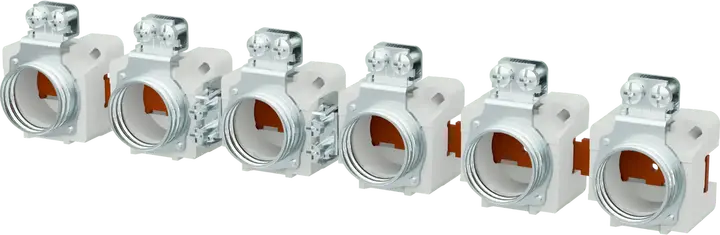

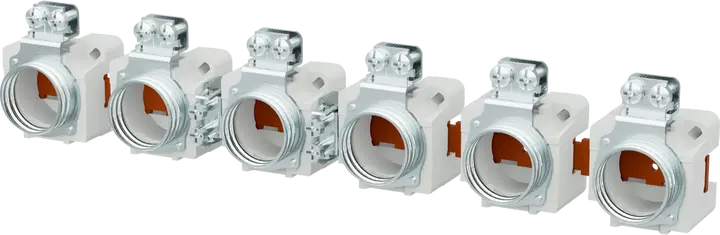

SET EZR 63/GEG 63 6p Fuse - base
- ETI Code:
- 002323114
- To use with:
- D fuse-links
- Rated DC voltage:
- 500 V
- Product group:
- LV-fuse base
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- EZR/6
- Size:
- DII
- Number of poles:
- 6
- Rated current:
- 63 A
- Rated AC voltage:
- 500 V
- Type of Installation:
- Busbar mounting
15 Logistics
Product
- EAN code for a single product
- 3838400074355
- Net weight of the product
- 0.808 kg
- Net width
- 347 mm
- Net height
- 47.7 mm
- Net depth
- 65 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895947950
- Transport packaging weight
- 10.026 kg
- Transport Packaging Dimensions Height
- 0.264 m
- Transport Packaging Dimensions Width
- 0.24 m
- Transport Packaging Dimensions Depth
- 0.304 m
- Transport packaging volume
- 0.019 m³
- Pallet quantity
- 396 pcs
- Customs tariff
- 85389099
6 ETIM
- Model
- Fitted screw
- Construction size
- DII
- Number of poles
- 6
- Rated voltage
- 500 V
- Rated current
- 63 A
- Material
- Porcelain
