002560017

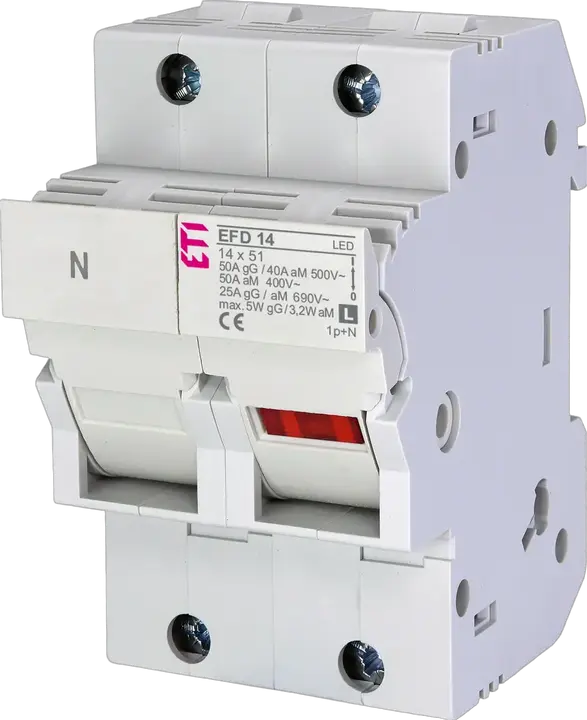

EFD 14 1p+N LED L Fuse disconnector
- ETI Code:
- 002560017
- Catalogue Group:
- LV-fuse-switch disconnector
- To use with:
- CH fuse-links
- Product group:
- LV-fuse-switch disconnector
- Overvoltage Category:
- III
- Type description:
- EFD
- Size:
- 14x51
- Type of Installation:
- DIN rail
- Number of poles:
- 1+N left
- Rated AC voltage:
- 690 V
- Utilization category:
- AC-22B
- Rated current:
- 50 A
- Indicator:
- LED
- Ambient temperature:
- -5/40 °C
- Max Permissable Power Dissipation per Fuse Link:
- 5 W
- Standards:
- IEC60947-1, IEC60947-3
- Application:
- Residential and industrial installation
- IP rating:
- IP20
22 Logistics
Product
- Net depth
- 75.84 mm
- Net weight of the product
- 227 g
- Net width
- 54 mm
- Net height
- 94 mm
- Stock unit of measure
- pcs
- EAN code for a single product
- 3838400032850
Basic Packaging
- EAN code for a basic packaging
- 3838895701385
- Basic packaging weight
- 1.428 kg
- Basic Packaging Dimensions Depth
- 0.327 m
- Basic Packaging Dimensions Height
- 0.083 m
- Basic packaging volume
- 0.003 m³
- Basic Packaging Dimensions Width
- 0.097 m
- Basic packaging quantity
- 6 pcs
Transport Packaging
- Transport packaging weight
- 11.976 kg
- Transport packaging volume
- 0.029 m³
- Transport packaging quantity
- 48 pcs
- Customs tariff
- 85389099
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.368 m
- Transport Packaging Dimensions Depth
- 0.368 m
- EAN code for a transport packaging
- 3838895701392
- Pallet quantity
- 1,152 pcs
9 ETIM
- Built-in depth
- 69 mm
- For fuse size
- 14x51 mm
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Nominal voltage
- 690 V
- Number of poles
- 2
- Concurrently switching neutral conductor
- Yes
- With optical defect indication
- Yes
- Width in number of modular spacings
- 3
ETIM Classification – Version 9.0
