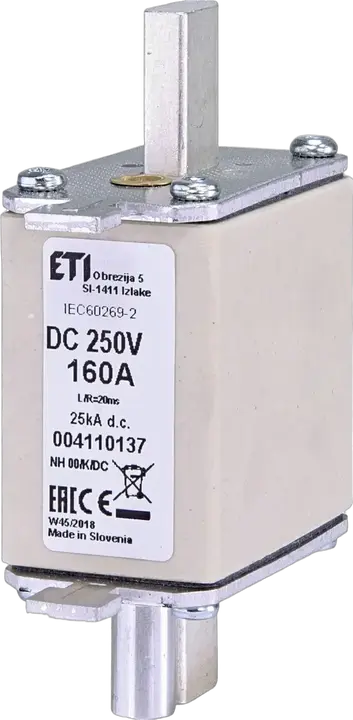

NH00/K 160A/250V DC Fuse link

ETI Code:: 004110137
Fuse type:: NH-K
Size:: NH00
Rated current:: 160 A
Time-Current Characteristic:: gR
Indicator:: Striker pin status indicator
Rated DC voltage:: 250 V
Breaking capacity DC:: 25 kA
L/R:: 20 ms
Power dissipation:: 13.8 W
Standards:: IEC 60269-2
Application:: Fuse link for DC application

Accessories

Product

EAN code for a single product: 3838895760771
Net weight of the product: 220 g
Net width: 29 mm
Net height: 86.5 mm
Net depth: 59.5 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895595106
Basic packaging weight: 0.691 kg
Basic Packaging Dimensions Height: 0.063 m
Basic Packaging Dimensions Width: 0.095 m
Basic Packaging Dimensions Depth: 0.107 m
Basic packaging volume: 0.001 m³

Transport Packaging

Transport packaging quantity: 54 pcs
EAN code for a transport packaging: 3838895978329
Transport packaging weight: 12.793 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.295 m
Transport Packaging Dimensions Depth: 0.235 m
Transport packaging volume: 0.018 m³
Pallet quantity: 2,808 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH00
Power loss at rated current: 13.8 W
Rated switching capacity DC: 25 kA
Type of fuse status indicator: Other
Rated current: 160 A
Rated voltage DC: 250
Utilization category: gR (general purpose semiconductor protection)
