004122023

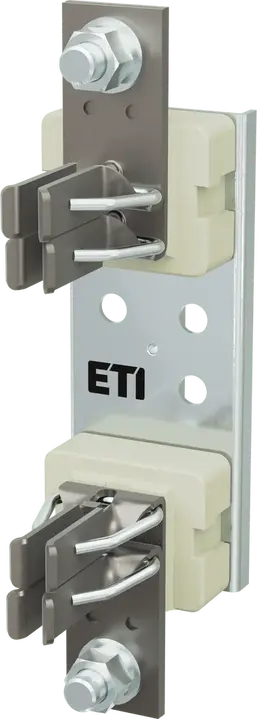

PK 3 M12-M12 DC 1000V 1p Fuse - base
- ETI Code:
- 004122023
- Type description:
- PK
- Size:
- NH3
- Number of poles:
- 1
- Rated current:
- 630 A
- Rated AC voltage:
- 1000 V
- Rated DC voltage:
- 1000 V
- Type of Installation:
- Base plate mounting
- Standards:
- IEC60269
22 Logistics
Product
- EAN code for a single product
- 3838400061706
- Net weight of the product
- 1.107 kg
- Net width
- 65 mm
- Net height
- 240.6 mm
- Net depth
- 100.8 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895697428
- Basic packaging weight
- 3.471 kg
- Basic Packaging Dimensions Height
- 0.09 m
- Basic Packaging Dimensions Width
- 0.14 m
- Basic Packaging Dimensions Depth
- 0.22 m
- Basic packaging volume
- 0.003 m³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895697435
- Transport packaging weight
- 14.339 kg
- Transport Packaging Dimensions Height
- 0.285 m
- Transport Packaging Dimensions Width
- 0.343 m
- Transport Packaging Dimensions Depth
- 0.363 m
- Transport packaging volume
- 0.035 m³
- Pallet quantity
- 288 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- NH00
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 630 A
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
21 Tags
004122023Fuse - basePK 3 M12-M12 DC 1000V 1pSpecial fusesFuse basesPK 1, 2, 3PK 1, 2, 31000V1000VInternationalFuse links NHFuse bases NH DCSize: NH3Type description: PKNumber of poles: 1Rated AC voltage: 1000 V/1000 VType of Installation: Base plate mountingStandards: IEC60269Rated DC voltage: 1000 V/1000 VRated current: 630 A/630 AFuse - base

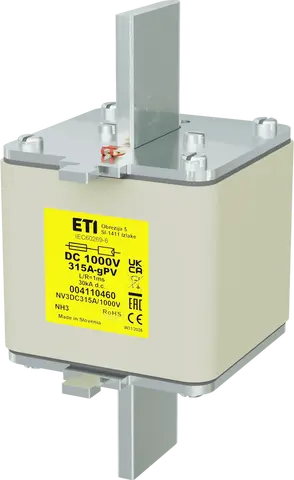

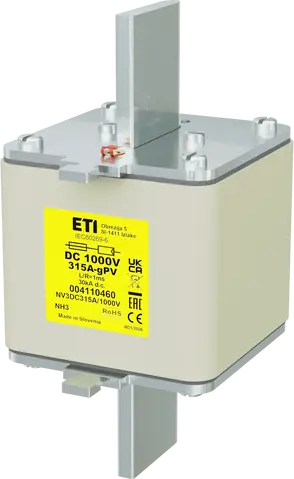

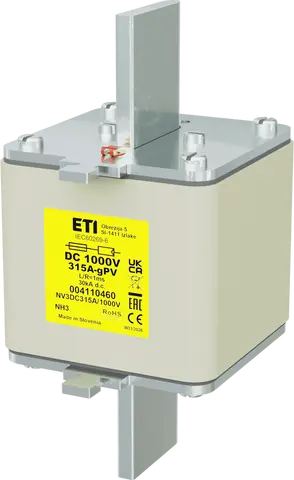

Accessories 49 All Accessories
