004132023

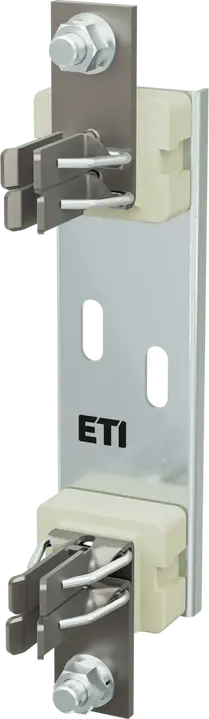

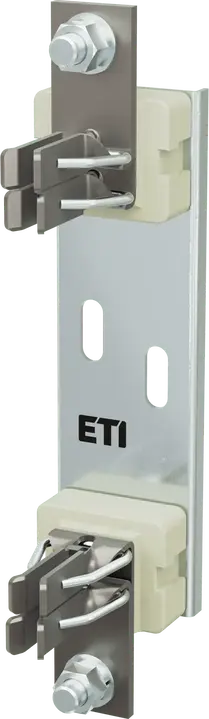

PK 3L M12-M12 1500V 1p Fuse - base
- ETI Code:
- 004132023
- UL certificate:
- E356295
- Type description:
- PK
- Size:
- NH3L
- Number of poles:
- 1
- Rated current:
- 630 A
- Rated AC voltage:
- 1500 V
- Rated DC voltage:
- 1500 V
- Type of Installation:
- Base plate mounting
- Standards:
- IEC 60269, UL 4248-1, UL 4248-19
- Max Permissable Power Dissipation per Fuse Link:
- 60 W
21 Logistics
Product
- Net weight of the product
- 1.184 kg
- Net width
- 65 mm
- Net height
- 300 mm
- Net depth
- 101.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895654858
- Basic packaging weight
- 1.314 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.162 m
- Basic Packaging Dimensions Depth
- 0.311 m
- Basic packaging volume
- 0.004 m³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895654865
- Transport packaging weight
- 13.94 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.37 m
- Transport Packaging Dimensions Depth
- 0.375 m
- Transport packaging volume
- 0.03 m³
- Pallet quantity
- 160 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- Other
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 630 A
ETIM Classification – Version 9.0
