004114333

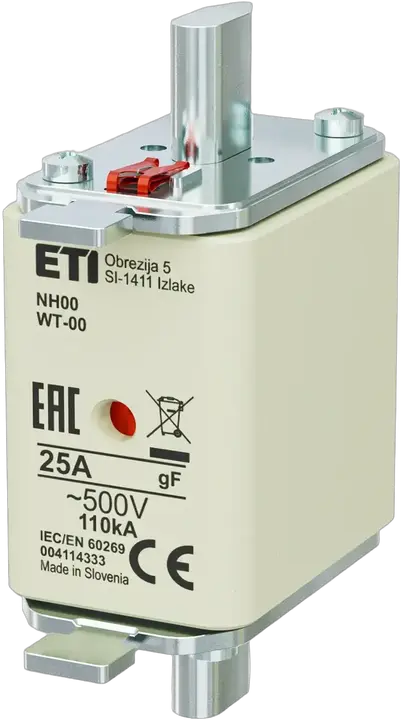

NH00 gF 25A/500V Fuse link
- ETI Code:
- 004114333
- Fuse type:
- NH
- Size:
- NH00
- Rated current:
- 25 A
- Time-Current Characteristic:
- gF
- Indicator:
- Combination fuse status indicator
- Rated AC voltage:
- 500 V
- Breaking capacity AC:
- 110 kA
- Power dissipation:
- 6 W
- Prearcing joule integral (A2s):
- 860
- Operating joule integral (A2s):
- 1,800
- Standards:
- PN-IEC 60269-2
- Application:
- For cable protection
5 Documents
22 Logistics
Product
- EAN code for a single product
- 5904722991392
- Net weight of the product
- 170 g
- Net width
- 29.5 mm
- Net height
- 78.8 mm
- Net depth
- 56.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895850670
- Basic packaging weight
- 0.533 kg
- Basic Packaging Dimensions Height
- 0.065 m
- Basic Packaging Dimensions Width
- 0.094 m
- Basic Packaging Dimensions Depth
- 0.083 m
- Basic packaging volume
- 0.001 m³
Transport Packaging
- Transport packaging quantity
- 90 pcs
- EAN code for a transport packaging
- 3838895850687
- Transport packaging weight
- 16.352 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 4,680 pcs
- Customs tariff
- 85361050
8 ETIM
- Rated switching capacity AC
- 110 kA
- Voltage type
- AC
- Fuse construction type according to IEC 60269
- NH00
- Rated voltage AC
- 500
- Power loss at rated current
- 6 W
- Type of fuse status indicator
- Combination fuse status indicator
- Rated current
- 25 A
- Utilization category
- Other
ETIM Classification – Version 9.0
