001690931

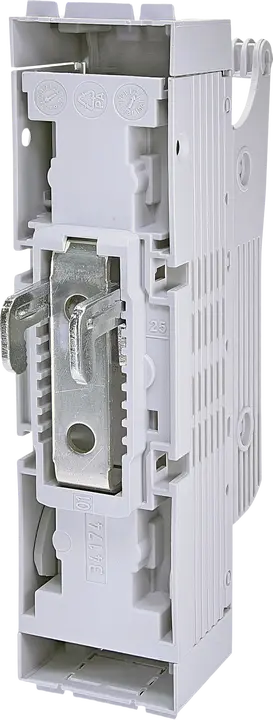

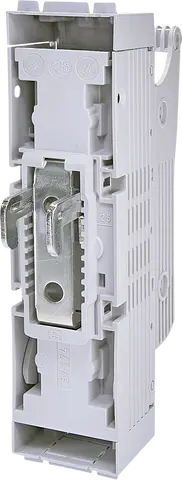

KVL-B/CF-00 1p M8-M8 Fuse switch disconnector
- ETI Code:
- 001690931
- Size:
- NH00
- Voltage type:
- AC/DC
- Tightening torque:
- 35-30 Nm
- Function:
- Fuse switch disconnector
- Number of poles:
- 3
- IP rating:
- IP20
- Type of installation:
- Busbar mounting
- Rated operational current Ie AC-21 at 400V:
- 160 A
- Utilization category:
- AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
- Overvoltage category:
- III
- Rated frequency:
- 40/60 Hz
- Max. altitude:
- ≤ 2000 m
- Rated operational voltage (DC):
- 440 V
- Rated conditional short-circuit current Inc:
- 120 kA
- Mechanical cycles:
- 1,600
- Ambient temperature:
- -25/55 °C
- Rated insulation voltage:
- 800 V
- Rated short-time withstand current Icw at 1s:
- 5 kA
- Rated operational current Ie AC-21 A/B at 690V:
- 160 A
- Electrical cycles:
- 200
- Power dissipation:
- 5 W
- Max. rated operational voltage (AC):
- 690 V
- Terminal screw:
- M10
- Pollution degree:
- 3
- Max. permissable power dissipation per fuse link:
- 12 W
- Rated impulse withstand voltage Uimp:
- 8 kV
15 Logistics
Product
- EAN code for a single product
- 3838895840848
- Net weight of the product
- 0.39 kg
- Net width
- 50 mm
- Net height
- 204 mm
- Net depth
- 111.85 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 2 pcs
- EAN code for a transport packaging
- 3838895823117
- Transport packaging weight
- 0.76 kg
- Transport Packaging Dimensions Height
- 224 mm
- Transport Packaging Dimensions Width
- 145 mm
- Transport Packaging Dimensions Depth
- 106 mm
- Transport packaging volume
- 3.443 dm³
- Pallet quantity
- 600 pcs
- Customs tariff
- 85363090
9 ETIM
- Version as safety switch
- ✓
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current Iu
- 160 A
- Suitable for fuses
- NH00
- Type of control element
- Cover grip
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 1
- Version as main switch
- ✓
ETIM Classification – Version 9.0
