004139119

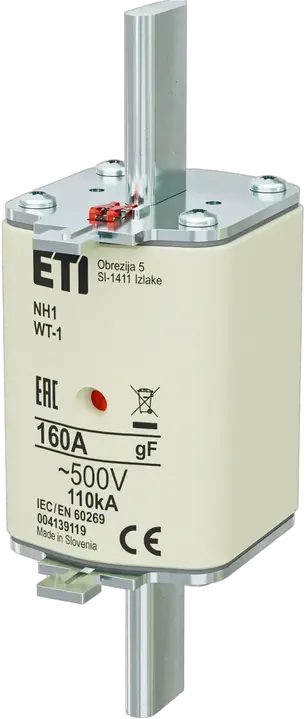

NH1 gF 160A/500V Fuse link
- ETI Code:
- 004139119
- Fuse type:
- NH
- Size:
- NH1
- Rated current:
- 160 A
- Time-Current Characteristic:
- gF
- Indicator:
- Combination fuse status indicator
- Rated AC voltage:
- 500 V
- Breaking capacity AC:
- 110 kA
- Power dissipation:
- 24.5 W
- Prearcing joule integral (A2s):
- 24,500
- Operating joule integral (A2s):
- 190,000
- Standards:
- PN-IEC 60269-2
- Application:
- For cable protection
5 Documents
22 Logistics
Product
- EAN code for a single product
- 5904722992139
- Net weight of the product
- 420 g
- Net width
- 46 mm
- Net height
- 135.6 mm
- Net depth
- 64.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895943273
- Basic packaging weight
- 1.33 kg
- Basic Packaging Dimensions Height
- 0.069 m
- Basic Packaging Dimensions Width
- 0.142 m
- Basic Packaging Dimensions Depth
- 0.142 m
- Basic packaging volume
- 0.001 m³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895943280
- Transport packaging weight
- 10.99 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 1,248 pcs
- Customs tariff
- 85361090
8 ETIM
- Rated switching capacity AC
- 110 kA
- Voltage type
- AC
- Fuse construction type according to IEC 60269
- NH1
- Rated voltage AC
- 500
- Power loss at rated current
- 24.5 W
- Type of fuse status indicator
- Combination fuse status indicator
- Rated current
- 160 A
- Utilization category
- Other
ETIM Classification – Version 9.0
