004114345

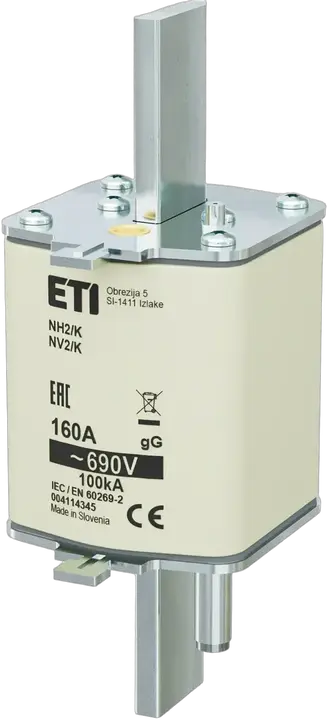

NH2/K gG 160A/690V Fuse link
- ETI Code:
- 004114345
- Fuse type:
- NH-K
- Size:
- NH2
- Rated current:
- 160 A
- Time-Current Characteristic:
- gG
- Indicator:
- Striker pin status indicator
- Rated AC voltage:
- 690 V
- Rated DC voltage:
- 250 V
- Breaking capacity AC:
- 100 kA
- Standards:
- IEC 60269-1, IEC 60269-2
- Application:
- For cable protection
5 Documents
22 Logistics
Product
- EAN code for a single product
- 3838400035714
- Net weight of the product
- 620 g
- Net width
- 55 mm
- Net height
- 151 mm
- Net depth
- 71 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895484264
- Basic packaging weight
- 1.936 kg
- Basic Packaging Dimensions Height
- 0.079 m
- Basic Packaging Dimensions Width
- 0.17 m
- Basic Packaging Dimensions Depth
- 0.17 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895484271
- Transport packaging weight
- 16.034 kg
- Transport Packaging Dimensions Height
- 0.23 m
- Transport Packaging Dimensions Width
- 0.38 m
- Transport Packaging Dimensions Depth
- 0.38 m
- Transport packaging volume
- 0.033 m³
- Pallet quantity
- 576 pcs
- Customs tariff
- 85361090
8 ETIM
- Rated switching capacity AC
- 100 kA
- Voltage type
- AC/DC
- Fuse construction type according to IEC 60269
- NH2
- Rated voltage AC
- 690
- Type of fuse status indicator
- Other
- Rated current
- 160 A
- Rated voltage DC
- 250
- Utilization category
- gG (cable protection/equipment protection)
ETIM Classification – Version 9.0
