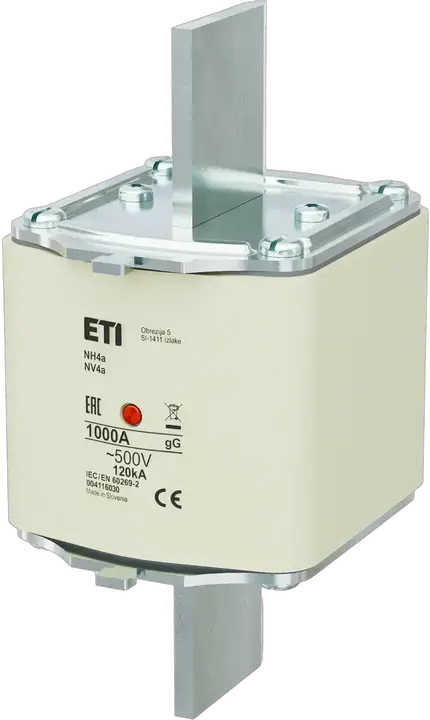

NH4a/MI gG 1000A/500V Fuse link
- ETI Code:
- 004176030
- Fuse type:
- NH
- Size:
- NH4a
- Rated current:
- 1000 A
- Time-Current Characteristic:
- gG
- Indicator:
- Centre fuse status indicator
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 250 V
- Breaking capacity AC:
- 120 kA
- Power dissipation:
- 84 W
- Operating joule integral (A2s):
- 20,000,000
- Prearcing joule integral (A2s):
- 6,250,000
- Standards:
- IEC 60269-1, IEC 60269-2
- Application:
- For cable protection
21 Logistics
Product
- Net weight of the product
- 2,810 g
- Net width
- 95 mm
- Net height
- 200.1 mm
- Net depth
- 121 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895308829
- Basic packaging weight
- 2.909 kg
- Basic Packaging Dimensions Height
- 0.1 m
- Basic Packaging Dimensions Width
- 0.212 m
- Basic Packaging Dimensions Depth
- 0.152 m
- Basic packaging volume
- 0.003 m³
Transport Packaging
- Transport packaging quantity
- 4 pcs
- EAN code for a transport packaging
- 3838895715726
- Transport packaging weight
- 11.958 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.365 m
- Transport Packaging Dimensions Depth
- 0.25 m
- Transport packaging volume
- 0.023 m³
- Pallet quantity
- 144 pcs
- Customs tariff
- 85361090
9 ETIM
- Rated switching capacity AC
- 120 kA
- Voltage type
- AC/DC
- Fuse construction type according to IEC 60269
- NH4a
- Rated voltage AC
- 500
- Power loss at rated current
- 84 W
- Type of fuse status indicator
- Centre fuse status indicator
- Rated current
- 1,000 A
- Rated voltage DC
- 250
- Utilization category
- gG (cable protection/equipment protection)
ETIM Classification – Version 9.0
3 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
26 Tags
004176030Fuse linkNH4a/MI gG 1000A/500VNV/NHLow voltage NH knife-blade fuse-linksNV/NH gG4a500V500VInternationalFuse links NHgG CharacteristicSize: NH4aOperating joule integral (A2s): 20000000Time-Current Characteristic: gGBreaking capacity AC: 120 kAPower dissipation: 84 WPrearcing joule integral (A2s): 6250000Fuse type: NHApplication: For cable protectionRated AC voltage: 500 V/500 VStandards: IEC 60269-1, IEC 60269-2Rated DC voltage: 250 V/250 VRated current: 1000 A/1000 AIndicator: Centre fuse status indicatorFuse link Size: NH4a Rated current: 1000 A/1000 A Rated AC voltage: 500 V/500 V Time-Current Characteristic: gG
