004115432

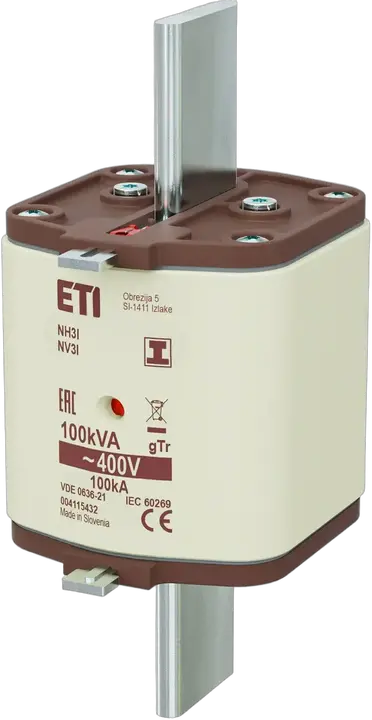

NH3/I gTr 144A/400V/100kVA Fuse link
- ETI Code:
- 004115432
- Fuse type:
- NH-I
- Size:
- NH3
- Transformer:
- 100 kVA
- Time-Current Characteristic:
- gTr
- Indicator:
- Combination fuse status indicator
- Rated AC voltage:
- 400 V
- Breaking capacity AC:
- 100 kA
- Power dissipation:
- 12 W
- Prearcing joule integral (A2s):
- 32,400
- Operating joule integral (A2s):
- 186,000
- Standards:
- VDE 0636-21
- Application:
- Protection of transformers
22 Logistics
Product
- EAN code for a single product
- 3838400038364
- Net weight of the product
- 800 g
- Net width
- 65 mm
- Net height
- 150.4 mm
- Net depth
- 83.4 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895785248
- Basic packaging weight
- 2.488 kg
- Basic Packaging Dimensions Height
- 0.093 m
- Basic Packaging Dimensions Width
- 0.203 m
- Basic Packaging Dimensions Depth
- 0.153 m
- Basic packaging volume
- 0.003 m³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895785255
- Transport packaging weight
- 10.302 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 624 pcs
- Customs tariff
- 85361090
9 ETIM
- Rated switching capacity AC
- 100 kA
- Voltage type
- AC
- Fuse construction type according to IEC 60269
- NH3
- Rated voltage AC
- 400
- Power loss at rated current
- 12 W
- Type of fuse status indicator
- Combination fuse status indicator
- Rated current
- 144 A
- Insulated metal gripping lugs (IMGL)
- Yes
- Utilization category
- gTr (Transformer protection)
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
25 Tags
004115432Fuse linkNH3/I gTr 144A/400V/100kVANV/NHLow voltage NH knife-blade fuse-linksNV/NH gTr3400V400VInternationalFuse links NHgTr CharacteristicSize: NH3Transformer: 100 kVAOperating joule integral (A2s): 186000Time-Current Characteristic: gTrBreaking capacity AC: 100 kAPower dissipation: 12 WPrearcing joule integral (A2s): 32400Fuse type: NH-IApplication: Protection of transformersRated AC voltage: 400 V/400 VStandards: VDE 0636-21Indicator: Combination fuse status indicatorFuse link NV Size: NH3 Transformer: 100 kVA Rated AC voltage: 400 V/400 V Time-Current Characteristic: gTr
