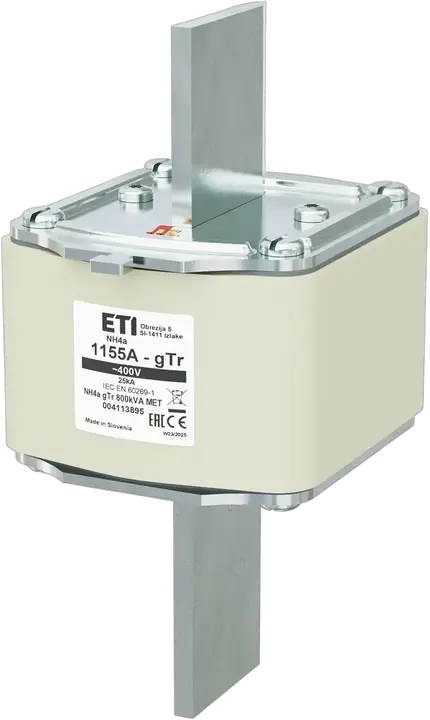

NH4a gTr 1155A/400V/800kVA MET Fuse link

ETI Code:: 004113895
Transformer:: 800 kVA
Fuse type:: NH
Size:: NH4a
Rated current:: 1155 A
Time-Current Characteristic:: gTr
Indicator:: Top fuse status indicator
Rated AC voltage:: 400 V
Breaking capacity AC:: 25 kA
Power dissipation:: 91 W
Standards:: IEC EN 60269-1
Application:: As metering fuse with strip fuse switch disconnector and fuse switch disconnector

Product

Net weight of the product: 2,280 g
Net width: 95 mm
Net height: 200.1 mm
Net depth: 121 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895619079
Basic packaging weight: 2.379 kg
Basic Packaging Dimensions Height: 0.1 m
Basic Packaging Dimensions Width: 0.212 m
Basic Packaging Dimensions Depth: 0.152 m
Basic packaging volume: 0.003 m³

Transport Packaging

Transport packaging quantity: 4 pcs
EAN code for a transport packaging: 3838400130020
Transport packaging weight: 9.838 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.365 m
Transport Packaging Dimensions Depth: 0.25 m
Transport packaging volume: 0.023 m³
Pallet quantity: 144 pcs
Customs tariff: 85361090

Rated switching capacity AC: 25 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH4a
Rated voltage AC: 400
Power loss at rated current: 91 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 1,155 A
Utilization category: gTr (Transformer protection)
