004184528

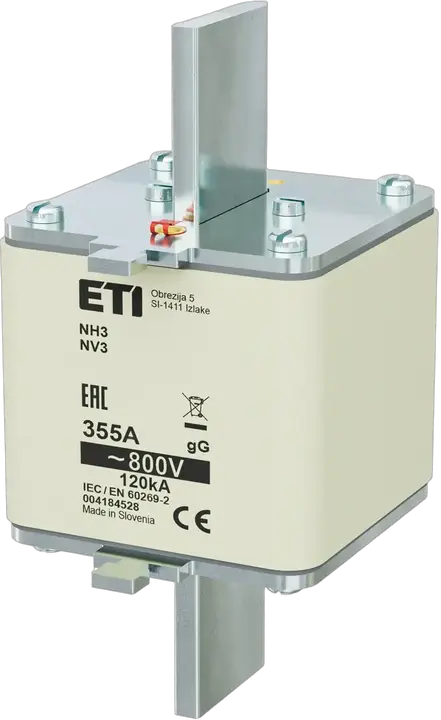

NH3 gG 355A/800V Fuse link
- ETI Code:
- 004184528
- Fuse type:
- NH
- Size:
- NH3
- Rated current:
- 355 A
- Time-Current Characteristic:
- gG
- Indicator:
- Top fuse status indicator
- Rated AC voltage:
- 800 V
- Breaking capacity AC:
- 120 kA
- Power dissipation (0,7xIn):
- 12.5 W
- Power dissipation:
- 27.5 W
- Prearcing joule integral (A2s):
- 280,000
- Operating joule integral (A2s):
- 1,700,000
- Standards:
- IEC 60269-2
- Application:
- For cable protection on a.c. side of PV inverter
22 Logistics
Product
- EAN code for a single product
- 3838400111098
- Net weight of the product
- 1,300 g
- Net width
- 74 mm
- Net height
- 151.7 mm
- Net depth
- 87.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838400111104
- Basic packaging weight
- 4.05 kg
- Basic Packaging Dimensions Height
- 0.103 m
- Basic Packaging Dimensions Width
- 0.244 m
- Basic Packaging Dimensions Depth
- 0.164 m
- Basic packaging volume
- 0.004 m³
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838400111111
- Transport packaging weight
- 20.8 kg
- Transport Packaging Dimensions Height
- 0.23 m
- Transport Packaging Dimensions Width
- 0.38 m
- Transport Packaging Dimensions Depth
- 0.38 m
- Transport packaging volume
- 0.033 m³
- Pallet quantity
- 360 pcs
- Customs tariff
- 85361090
8 ETIM
- Rated switching capacity AC
- 120 kA
- Voltage type
- AC
- Fuse construction type according to IEC 60269
- NH3
- Rated voltage AC
- 800
- Power loss at rated current
- 27.5 W
- Type of fuse status indicator
- Top fuse status indicator
- Rated current
- 355 A
- Utilization category
- gG (cable protection/equipment protection)
ETIM Classification – Version 9.0
